Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 3090 Ti > Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE

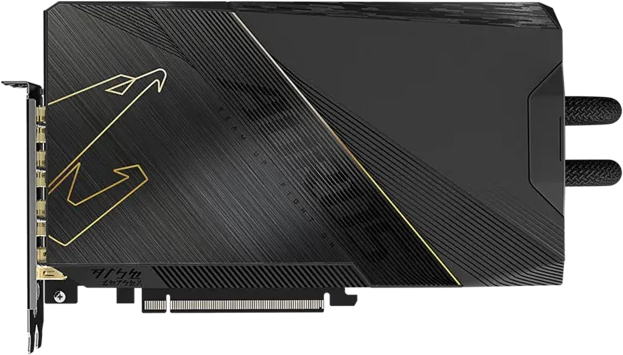

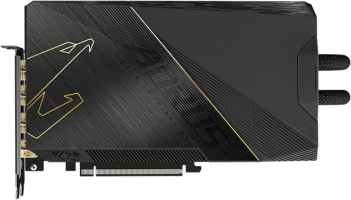

Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE - Front

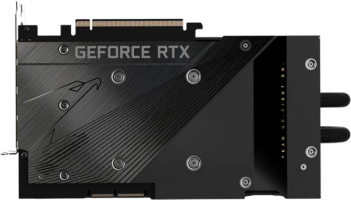

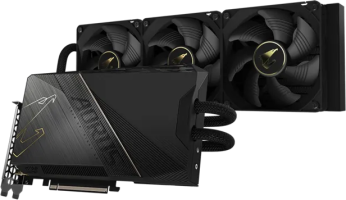

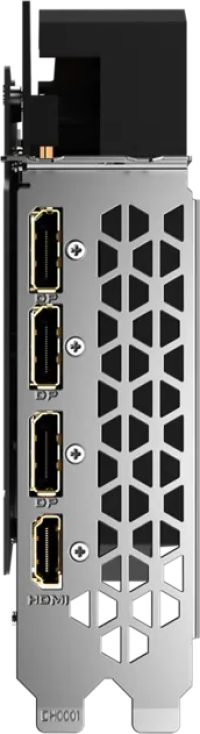

Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE - Front Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE - Rear Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE - Side Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE - Outputs
Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE
GV-N309TAORUSX W-24GD
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature92 C
Core
NameGA102
FoundrySamsung
Process Node8 nm
Transistors28300 million
Die Size628.0 mm²
Density45.1 /mm²
GPU Core Config
Cores10752
TMUs336
ROPs112
Tensor Cores336
RT Cores84
Memory
TechnologyGDDR6X
Size24 GB
Bus384 bit
Bandwidth1,008.4 GB/s
Speed21.0 Gbps
Clocks
Base clock1560 MHz
Boost Clock1935 MHz 1860 MHz
Memory Clock1313 MHz
Power
16-pin1
TDP450 w
Recommended PSU850 w
Display
DisplayPort3 1.4a
HDMI1 2.1
Resolution7680x4320
Monitors4
Dimensions
Slots2 3
Length238 mm 336 mm
Height141 mm 140 mm
Width40 mm 61 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus TUF Gaming GeForce RTX 3090 Ti OC Edition
TUF-RTX3090TI-O24G-GAMING
1950 MHz +4.8%3.2325.9 mm140.2 mm62.8 mm
NVIDIA RTX 3090 Ti Founders Edition
1860 MHz3336 mm140 mm61 mm
Asus TUF Gaming GeForce RTX 3090 Ti
TUF-RTX3090TI-24G-GAMING
1890 MHz +1.6%3.2325.9 mm140.2 mm62.8 mm
Asus ROG Strix LC GeForce RTX 3090 Ti
ROG-STRIX-LC-RTX3090TI-24G-GAMING-MODEL
1890 MHz +1.6%2.6293 mm133 mm52 mm
Asus ROG Strix LC GeForce RTX 3090 Ti OC Edition
ROG-STRIX-LC-RTX3090TI-O24G-GAMING-MODEL
1980 MHz +6.5%2.6293 mm133 mm52 mm
Gigabyte GeForce RTX 3090 Ti GAMING
GV-N309TGAMING-24GD
1860 MHz3.5331 mm150 mm70 mm
Gigabyte GeForce RTX 3090 Ti GAMING OC
GV-N309TGAMING OC-24GD
1905 MHz +2.4%3.5331 mm150 mm70 mm
Gigabyte AORUS GeForce RTX 3090 Ti XTREME WATERFORCE
GV-N309TAORUSX W-24GD
1935 MHz +4.0%2238 mm141 mm40 mm

EVGA GeForce RTX 3090 Ti FTW3 BLACK GAMING
24G-P5-4981-KR
1860 MHz3.5300 mm136.8 mm

EVGA GeForce RTX 3090 Ti FTW3 GAMING
24G-P5-4983-KR
1890 MHz +1.6%3.5300 mm136.8 mm

EVGA GeForce RTX 3090 Ti FTW3 ULTRA GAMING
24G-P5-4985-KR
1920 MHz +3.2%3.5300 mm136.8 mm
