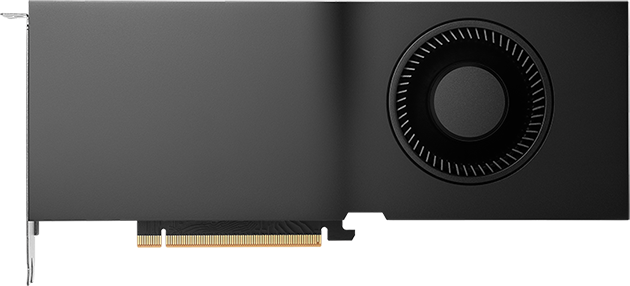

NVIDIA RTX 5000 Ada

The RTX 5000 Ada is a workstation-grade GPU from NVIDIA's GeForce RTX 40 series, built on the Ada Lovelace architecture using the AD102 chip. Equipped with 32 GB of GDDR6 memory on a 256-bit bus, it delivers 576.0 GB/s of bandwidth at 18.0 Gbps.

Launched on 8 Aug, 2023, the RTX 5000 Ada carried a starting price of $4499.

GPUs.net

Information
PlatformWorkstation
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Core
NameAD102
FoundryTSMC
Process Node5 nm
Transistors76300 million
Die Size609.0 mm²
Density125.3 /mm²
GPU Core Config
Cores12800
Memory
TechnologyGDDR6
Size32 GB
Bus256 bit
Bandwidth576.0 GB/s
Speed18.0 Gbps

Information
Platform	Workstation
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16

Core
Name	AD102
Foundry	TSMC
Process Node	5 nm
Transistors	76300 million
Die Size	609.0 mm²
Density	125.3 /mm²

GPU Core Config
Cores	12800

Memory
Technology	GDDR6
Size	32 GB
Bus	256 bit
Bandwidth	576.0 GB/s
Speed	18.0 Gbps

Clocks
Base clock1155 MHz
Boost Clock2550 MHz
Memory Clock2250 MHz
Power
16-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort4 1.4a
Dimensions
Slots2
Length267 mm
Height112 mm
Width40 mm
Weight1080 g

Clocks
Base clock	1155 MHz
Boost Clock	2550 MHz
Memory Clock	2250 MHz

Power
16-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	4 1.4a

Dimensions
Slots	2
Length	267 mm
Height	112 mm
Width	40 mm
Weight	1080 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX 5000 Ada Generation VCNRTX5000ADA-PB	2550 MHz	2	267 mm	112 mm	40 mm
PNY RTX 5000 Ada Generation Bulk VCNRTX5000ADA-SB	2550 MHz
NVIDIA RTX 5000 Ada Generation 900-5G132-2540-000	2550 MHz
HP RTX 5000 Ada Generation 8D6B6AA	2550 MHz
Lenovo RTX 5000 Ada Generation 4X61N43590	2550 MHz
NVIDIA RTX 5000e Ada 900-5G132-2240-E00	2550 MHz
Dell RTX 5000 Ada DELL-84MHH	2550 MHz
