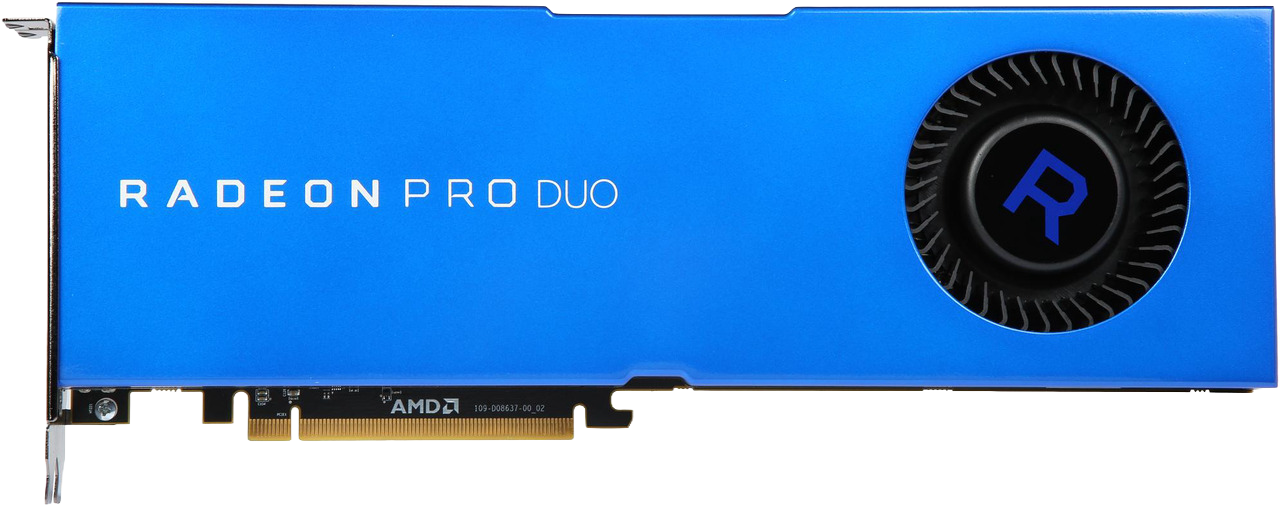

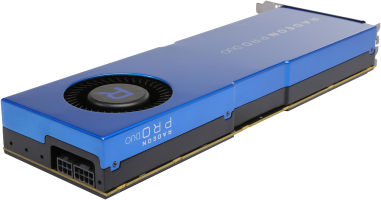

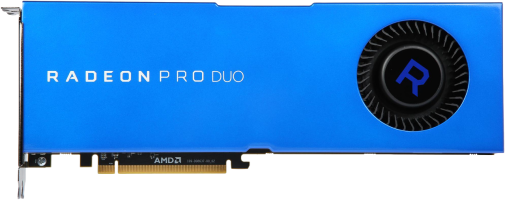

AMD Radeon PRO Duo Polaris

The Radeon PRO Duo Polaris is a workstation-grade GPU from amd's Radeon Pro GCN series, built on the Polaris architecture using the Ellesmere chip. Equipped with 16 GB of GDDR5 memory on a 256-bit bus, it delivers 224.0 GB/s of bandwidth at 7.0 Gbps.

Launched on 23 Apr, 2017, the Radeon PRO Duo Polaris carried a starting price of $999.

GPUs.net

Information
PlatformWorkstation
ArchitecturePolaris
GenerationRadeon Pro GCN
Previous GenFirePro GCN
Next GenRadeon Pro Polaris
InterfacePCIe 3.0 x16
Core
NameEllesmere
FoundryGlobalFoundries
Process Node14 nm
Transistors5700 million
Die Size232.0 mm²
Density24.6 /mm²
GPU Core Config
Cores2304
Compute Units36
TMUs144
ROPs32
Memory
TechnologyGDDR5
Size16 GB
Bus256 bit
Bandwidth224.0 GB/s
Speed7.0 Gbps

Information
Platform	Workstation
Architecture	Polaris
Generation	Radeon Pro GCN
Previous Gen	FirePro GCN
Next Gen	Radeon Pro Polaris
Interface	PCIe 3.0 x16

Core
Name	Ellesmere
Foundry	GlobalFoundries
Process Node	14 nm
Transistors	5700 million
Die Size	232.0 mm²
Density	24.6 /mm²

GPU Core Config
Cores	2304
Compute Units	36
TMUs	144
ROPs	32

Memory
Technology	GDDR5
Size	16 GB
Bus	256 bit
Bandwidth	224.0 GB/s
Speed	7.0 Gbps

Clocks
Base clock1243 MHz
Memory Clock1750 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w

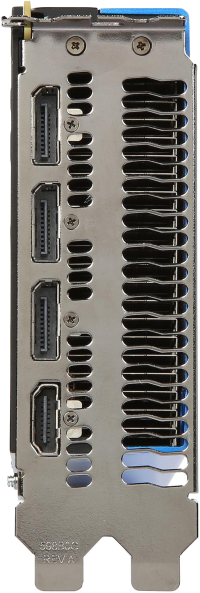

Display
DisplayPort3 1.4
HDMI1 2
Dimensions
Slots2
Length305 mm
Height111 mm

Clocks
Base clock	1243 MHz
Memory Clock	1750 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3 1.4
HDMI	1 2

Dimensions
Slots	2
Length	305 mm
Height	111 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
AMD Radeon PRO Duo Polaris 100-506048
