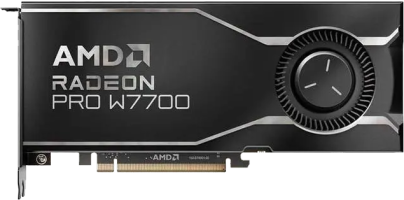

AMD Radeon PRO W7700

The Radeon PRO W7700 is a workstation-grade GPU from amd's Radeon Pro Navi series, built on the RDNA3 architecture using the Navi 32 chip. Equipped with 16 GB of GDDR6 memory on a 256-bit bus, it delivers 576.0 GB/s of bandwidth at 18.0 Gbps.

Launched on 12 Nov, 2023, the Radeon PRO W7700 carried a starting price of $999.

GPUs.net

Information
PlatformWorkstation
ArchitectureRDNA3
GenerationRadeon Pro Navi
Previous GenRadeon Pro Vega
InterfacePCIe 4.0 x16
Core
NameNavi 32
FoundryTSMC
Process Node5 nm
Transistors28100 million
Die Size346.0 mm²
Density81.2 /mm²
GPU Core Config
Cores3072
TMUs192
ROPs96
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Bandwidth576.0 GB/s
Speed18.0 Gbps

Information
Platform	Workstation
Architecture	RDNA3
Generation	Radeon Pro Navi
Previous Gen	Radeon Pro Vega
Interface	PCIe 4.0 x16

Core
Name	Navi 32
Foundry	TSMC
Process Node	5 nm
Transistors	28100 million
Die Size	346.0 mm²
Density	81.2 /mm²

GPU Core Config
Cores	3072
TMUs	192
ROPs	96

Memory
Technology	GDDR6
Size	16 GB
Bus	256 bit
Bandwidth	576.0 GB/s
Speed	18.0 Gbps

Clocks
Base clock1900 MHz
Boost Clock2600 MHz
Memory Clock2250 MHz
Power
8-pin1
TDP190 w
Recommended PSU650 w
Display
DisplayPort4 2.1
Dimensions
Slots2
Length241 mm
Height111 mm
Width40 mm

Clocks
Base clock	1900 MHz
Boost Clock	2600 MHz
Memory Clock	2250 MHz

Power
8-pin	1
TDP	190 w
Recommended PSU	650 w

Display
DisplayPort	4 2.1

Dimensions
Slots	2
Length	241 mm
Height	111 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
AMD Radeon PRO W7700 100-300000006	2600 MHz	2	241 mm
