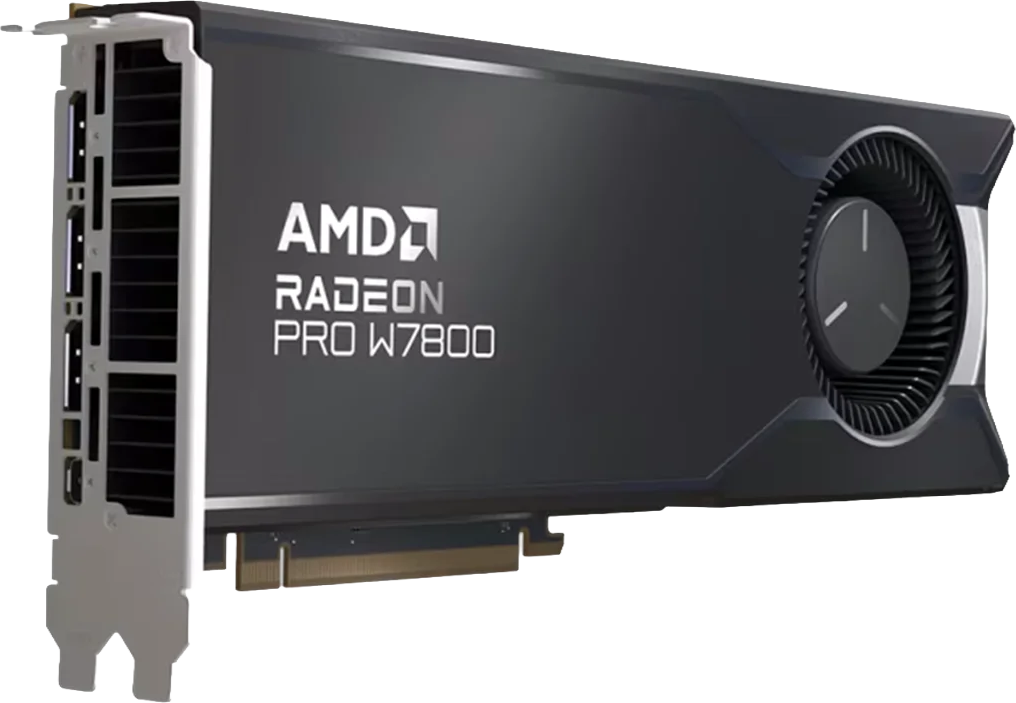

AMD Radeon PRO W7800

The Radeon PRO W7800 is a workstation-grade GPU from amd's Radeon Pro Navi series, built on the RDNA3 architecture using the Navi 31 chip. Equipped with 32 GB of GDDR6 memory on a 256-bit bus, it delivers 576.0 GB/s of bandwidth at 18.0 Gbps.

Launched on 12 Apr, 2023, the Radeon PRO W7800 carried a starting price of $2499.

GPUs.net

Information
PlatformWorkstation
ArchitectureRDNA3
GenerationRadeon Pro Navi
Previous GenRadeon Pro Vega
InterfacePCIe 4.0 x16
Core
NameNavi 31
FoundryTSMC
Process Node5 nm
Transistors57700 million
Die Size529.0 mm²
Density109.1 /mm²
GPU Core Config
Cores4480
TMUs280
ROPs128
RT Cores70
Memory
TechnologyGDDR6
Size32 GB
Bus256 bit
Bandwidth576.0 GB/s
Speed18.0 Gbps

Information
Platform	Workstation
Architecture	RDNA3
Generation	Radeon Pro Navi
Previous Gen	Radeon Pro Vega
Interface	PCIe 4.0 x16

Core
Name	Navi 31
Foundry	TSMC
Process Node	5 nm
Transistors	57700 million
Die Size	529.0 mm²
Density	109.1 /mm²

GPU Core Config
Cores	4480
TMUs	280
ROPs	128
RT Cores	70

Memory
Technology	GDDR6
Size	32 GB
Bus	256 bit
Bandwidth	576.0 GB/s
Speed	18.0 Gbps

Clocks
Base clock1895 MHz
Boost Clock2525 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP260 w
Recommended PSU600 w
Display
DisplayPort3 2.1
Mini DisplayPort1
Dimensions
Slots2
Length280 mm
Height110 mm
Width40 mm

Clocks
Base clock	1895 MHz
Boost Clock	2525 MHz
Memory Clock	2250 MHz

Power
8-pin	2
TDP	260 w
Recommended PSU	600 w

Display
DisplayPort	3 2.1
Mini DisplayPort	1

Dimensions
Slots	2
Length	280 mm
Height	110 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
AMD Radeon PRO W7800 100-300000075	2525 MHz	2	280 mm	110 mm	40 mm
