AMD Radeon PRO WX 3200 Database - Specs, information & files

AMD Radeon PRO WX 3200

Specs, info and data

The GPU Database

Featuring 250+ GPU models — and growing.

Database > GPUs > AMD Radeon PRO WX 3200

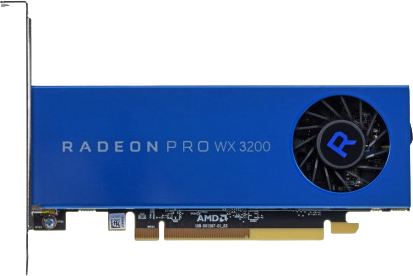

AMD Radeon PRO WX 3200

The Radeon PRO WX 3200 is a workstation-grade GPU from amd's Radeon Pro Polaris series, built on the Polaris architecture using the Polaris 23 chip. Equipped with 4 GB of GDDR5 memory on a 128-bit bus, it delivers 96.0 GB/s of bandwidth at 6.0 Gbps.

Launched on 1 Jul, 2019, the Radeon PRO WX 3200 carried a starting price of $199.

GPUs.net

Information
PlatformWorkstation
ArchitecturePolaris
GenerationRadeon Pro Polaris
Next GenRadeon Pro Vega
InterfacePCIe 3.0 x8
Core
NamePolaris 23
FoundryGlobalFoundries
Process Node14 nm
Transistors2200 million
Die Size103.0 mm²
Density21.4 /mm²
GPU Core Config
Cores640
TMUs32
ROPs16
Memory
TechnologyGDDR5
Size4 GB
Bus128 bit
Bandwidth96.0 GB/s
Speed6.0 Gbps

Information
Platform	Workstation
Architecture	Polaris
Generation	Radeon Pro Polaris
Next Gen	Radeon Pro Vega
Interface	PCIe 3.0 x8

Core
Name	Polaris 23
Foundry	GlobalFoundries
Process Node	14 nm
Transistors	2200 million
Die Size	103.0 mm²
Density	21.4 /mm²

GPU Core Config
Cores	640
TMUs	32
ROPs	16

Memory
Technology	GDDR5
Size	4 GB
Bus	128 bit
Bandwidth	96.0 GB/s
Speed	6.0 Gbps

Clocks
Base clock1295 MHz
Boost Clock1295 MHz
Memory Clock1500 MHz
Power
TDP65 w
Recommended PSU250 w
Display
Mini DisplayPort4
Dimensions
Slots1
Length167 mm
Height69 mm
Width20 mm

Clocks
Base clock	1295 MHz
Boost Clock	1295 MHz
Memory Clock	1500 MHz

Power
TDP	65 w
Recommended PSU	250 w

Display
Mini DisplayPort	4

Dimensions
Slots	1
Length	167 mm
Height	69 mm
Width	20 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
AMD Radeon PRO WX 3200 100-506115	1295 MHz	1	167 mm	69 mm	20 mm
