AMD RX 7900 XTX

The RX 7900 XTX is a consumer-grade GPU from amd's RX 7000 series, built on the RDNA3 architecture using the Navi 31 chip. Equipped with 24 GB of GDDR6 memory on a 384-bit bus, it delivers 960.0 GB/s of bandwidth at 20.0 Gbps.

Launched on 12 Dec, 2022, the RX 7900 XTX carried a starting price of $999.

Mine with RX 7900 XTX
Earn $0.44/d*
Estimates
* Before power cost
GPUs.net

Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x16
Core
NameNavi 31
FoundryTSMC
Process Node5 nm
Transistors57700 million
Die Size529.0 mm²
Density109.1 /mm²
GPU Core Config
Cores6144
Compute Units96
TMUs384
ROPs192
RT Cores96
Memory
TechnologyGDDR6
Size24 GB
Bus384 bit
Infinity Cache96 MB
Bandwidth960.0 GB/s
Speed20.0 Gbps

Information
Platform	Consumer
Architecture	RDNA3
Generation	RX 7000
Previous Gen	RX 6000
Next Gen	RX 9000
Interface	PCIe 4.0 x16

Core
Name	Navi 31
Foundry	TSMC
Process Node	5 nm
Transistors	57700 million
Die Size	529.0 mm²
Density	109.1 /mm²

GPU Core Config
Cores	6144
Compute Units	96
TMUs	384
ROPs	192
RT Cores	96

Memory
Technology	GDDR6
Size	24 GB
Bus	384 bit
Infinity Cache	96 MB
Bandwidth	960.0 GB/s
Speed	20.0 Gbps

Clocks
Base clock1855 MHz
Boost Clock2499 MHz
Memory Clock2500 MHz
Power
8-pin2
TDP355 w
Recommended PSU750 w
Display

Clocks
Base clock	1855 MHz
Boost Clock	2499 MHz
Memory Clock	2500 MHz

Power
8-pin	2
TDP	355 w
Recommended PSU	750 w

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Sapphire NITRO+ AMD Radeon RX 7900 XTX Vapor-X 11322-01-40G	2680 MHz +7.2%	3.6	320 mm	135.8 mm	71.6 mm

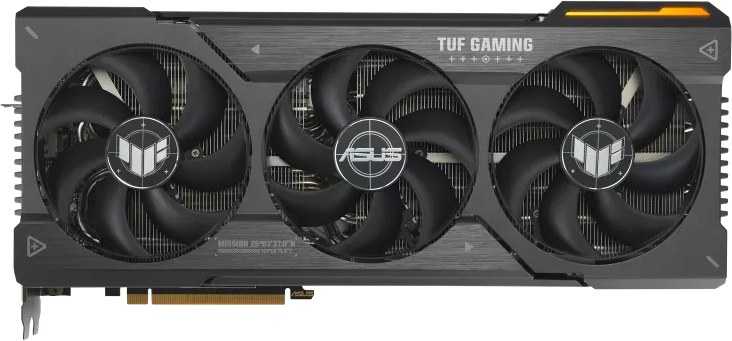

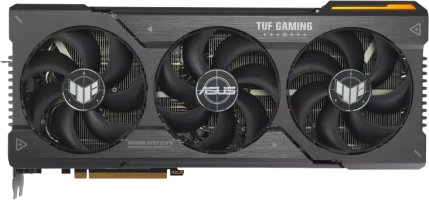

Asus TUF Gaming Radeon RX 7900 XTX OC Edition TUF-RX7900XTX-O24G-GAMING	2615 MHz +4.6%	3.7	352.9 mm	158.2 mm	72.6 mm
PowerColor Hellhound AMD Radeon RX 7900 XTX RX7900XTX 24G-L/OC	2525 MHz +1.0%	3.1	320 mm	118.5 mm	62 mm
ASRock Radeon RX 7900 XTX Taichi White OC RX7900XTX TCW 24GO	2680 MHz +7.2%	3.1	345 mm	140 mm	61 mm
ASRock Radeon RX 7900 XTX Phantom Gaming OC RX7900XTX PG 24GO	2615 MHz +4.6%	2.9	330 mm	140 mm	57.6 mm
XFX SPEEDSTER MERC 310 AMD Radeon RX 7900 XTX Black Edition RX-79XMERCB9	2615 MHz +4.6%	2.9	344 mm	128 mm	57 mm
Sapphire PULSE AMD Radeon RX 7900 XTX 11322-02-20G	2525 MHz +1.0%	2.7	313 mm	133.8 mm	52.7 mm
