NVIDIA RTX 5070 Ti

The RTX 5070 Ti is a consumer-grade GPU from nvidia's GeForce RTX 50 series, built on the  architecture using the GB203 chip. Equipped with 16 GB of GDDR7 memory on a 256-bit bus, it delivers 896.0 GB/s of bandwidth at 28.0 Gbps.

Launched on 19 Feb, 2025, the RTX 5070 Ti carried a starting price of $749.

FP16 Tensor Benchmark156.11 TFLOPS 88.8%
 Theoretical175.8 TFLOPS
FP32 Benchmark44.30 TFLOPS 100.8%
 Theoretical43.9 TFLOPS
FP65 Benchmark0.68 TFLOPS 99.0%
 Theoretical0.69 TFLOPS
Rent RTX 5070 Ti
Cost $0.09/h*
Vast
* Median price
Host RTX 5070 Ti
Earn $0.09/h*
Vast
* Median price
Mine with RTX 5070 Ti
Earn $0.38/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB203
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores8960
TMUs280
ROPs96
SMs70
RT Cores70
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth896 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB203
Interface	PCIe 5.0 x16
Max temperature	88 C

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

GPU Core Config
Cores	8960
TMUs	280
ROPs	96
SMs	70
RT Cores	70

Memory
Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	896 GB/s
Speed	28 Gbps

Clocks
Base clock2295 MHz
Boost Clock2452 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP300 w
Recommended PSU750 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3

Clocks
Base clock	2295 MHz
Boost Clock	2452 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	300 w
Recommended PSU	750 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲

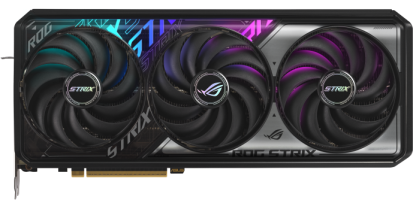

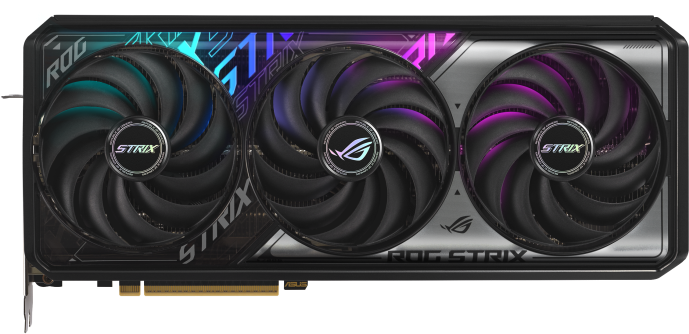

Asus ROG Strix GeForce RTX 5070 Ti ROG-STRIX-RTX5070TI-16G-GAMING	2452 MHz	3.2	332 mm	147.3 mm	64 mm
Asus ROG Strix GeForce RTX 5070 Ti OC Edition ROG-STRIX-RTX5070TI-O16G-GAMING	2602 MHz +6.1%	3.2	332 mm	147.3 mm	64 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA ZT-B50710BU-10P	2572 MHz +4.9%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ZT-B50710B-10P	2512 MHz +2.4%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti SOLID OC ZT-B50710J-10P	2482 MHz +1.2%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID ZT-B50710D-10P	2452 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC White Edition ZT-B50710Q2-10P	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC ZT-B50710J2-10P	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE ZT-B50710D2-10P	2452 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID SFF OC ZT-B50710J3-10A	2482 MHz +1.2%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 Ti SOLID SFF ZT-B50710D3-10P	2452 MHz	2.1	304.4 mm	115.8 mm	41.6 mm
Gigabyte AORUS GeForce RTX 5070 Ti MASTER GV-N507TAORUS M-16GD	2670 MHz +8.9%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5070 Ti GAMING OC GV-N507TGAMING OC-16GD	2588 MHz +5.5%	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti GAMING GV-N507TGAMING-16GD	2452 MHz	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF GV-N507TEAGLEOC ICE-16GD	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF GV-N507TEAGLE OC-16GD	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE SFF GV-N507TEAGLE-16GD	2452 MHz	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti AERO OC GV-N507TAERO OC-16GD	2588 MHz +5.5%	3.5	342 mm	140 mm	70 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC V2 GV-N507TWF3OCV2-16GD	2497 MHz +1.8%	2.5	261 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF GV-N507TWF3OC-16GD	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE SFF GV-N507TWF3-16GD	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti PROART-RTX5070TI-16G	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti OC Edition PROART-RTX5070TI-O16G	2588 MHz +5.5%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White OC Edition TUF-RTX5070TI-O16G-BTF-WHITE	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White Edition TUF-RTX5070TI-16G-BTF-WHITE	2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti White OC Edition TUF-RTX5070TI-O16G-WHITE-GAMING	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus PRIME GeForce RTX 5070 Ti PRIME-RTX5070TI-16G	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5070 Ti OC Edition PRIME-RTX5070TI-O16G	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti TUF-RTX5070TI-16G-GAMING	2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti OC Edition TUF-RTX5070TI-O16G-GAMING	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
MSI GeForce RTX 5070 Ti FRIEREN EDITION OC G507T-16FEC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ G507T-16V3Z	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ OC G507T-16V3ZC	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti MLG EDITION G507T-16ME	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti MLG EDITION OC G507T-16MEC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti EXPERT G507T-16E	2452 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti EXPERT OC G507T-16EC	2580 MHz +5.2%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X G507T-16I3	2452 MHz	2.5	288 mm	122 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC G507T-16I3C	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO G507T-16GT	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC G507T-16GTC	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO WHITE G507T-16GTW	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC WHITE G507T-16GTCW	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO PLUS G507T-16GTP	2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS G507T-16GTCP	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti SHADOW 3X G507T-16S3	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti SHADOW 3X OC G507T-16S3C	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC LAUNCH EDITION G507T-16VGSL	2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC G507T-16VGS	2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD OC G507T-16VGC	2572 MHz +4.9%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VENTUS 3X G507T-16V3	2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X OC G507T-16V3C	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X PLUS G507T-16I3P	2452 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC PLUS G507T-16I3CP	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
Palit GeForce RTX 5070 Ti GamingPro-S NE7507T019T2-GB2031U	2452 MHz	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro-S OC NE7507TS19T2-GB2031U	2482 MHz +1.2%	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro V1 NE7507T019T2-GB2031Y	2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC V1 NE7507TS19T2-GB2031Y	2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro NE7507T019T2-GB2031A	2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC NE7507TS19T2-GB2031A	2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GameRock NE7507T019T2-GB2030G	2452 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5070 Ti GameRock OC NE7507TH19T2-GB2030G	2512 MHz +2.4%	3.6	331.9 mm	160 mm	70.4 mm

FP16 Tensor	Benchmark	156.11 TFLOPS 88.8%
FP16 Tensor	Theoretical	175.8 TFLOPS
FP32	Benchmark	44.30 TFLOPS 100.8%
FP32	Theoretical	43.9 TFLOPS
FP65	Benchmark	0.68 TFLOPS 99.0%
FP65	Theoretical	0.69 TFLOPS
