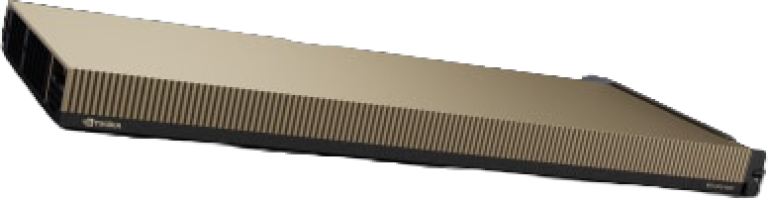

NVIDIA RTX PRO 4500 Server

The RTX PRO 4500 Server is a server-grade GPU from nvidia's Blackwell PRO W series, built on the  architecture using the GB203 chip. Equipped with 32 GB of GDDR7 memory on a 256-bit bus, it delivers 896.0 GB/s of bandwidth at 28.0 Gbps.

Launched on 16 Mar, 2026, the RTX PRO 4500 Server carried a starting price of $2499.

Information
PlatformServer
ArchitectureBlackwell 2nd-gen
GenerationBlackwell PRO W
InterfacePCIe 5.0 x16
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores10496
TMUs328
ROPs112
Tensor Cores328
RT Cores82
Memory
TechnologyGDDR7
Size32 GB
Bus256 bit
Bandwidth896 GB/s
Speed28 Gbps

Information
Platform	Server
Architecture	Blackwell 2nd-gen
Generation	Blackwell PRO W
Interface	PCIe 5.0 x16

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

GPU Core Config
Cores	10496
TMUs	328
ROPs	112
Tensor Cores	328
RT Cores	82

Memory
Technology	GDDR7
Size	32 GB
Bus	256 bit
Bandwidth	896 GB/s
Speed	28 Gbps

Clocks
Base clock1590 MHz
Boost Clock2620 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP165 w
Recommended PSU850 w
Dimensions
Slots1
Length266.7 mm
Height111.8 mm
Width20 mm

Clocks
Base clock	1590 MHz
Boost Clock	2620 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	165 w
Recommended PSU	850 w

Dimensions
Slots	1
Length	266.7 mm
Height	111.8 mm
Width	20 mm
