NVIDIA RTX PRO 6000 Workstation Database - Specs, information & files

NVIDIA RTX PRO 6000 Workstation

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX PRO 6000 Workstation

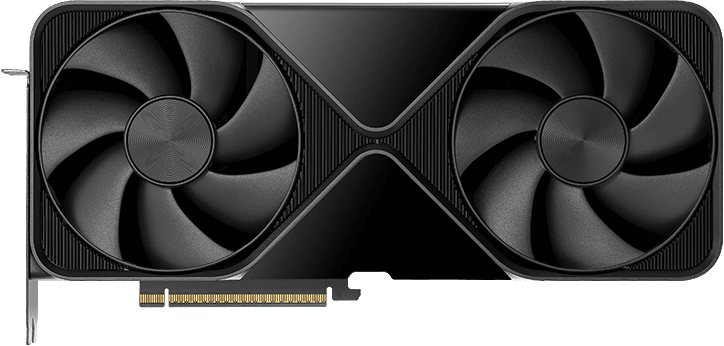

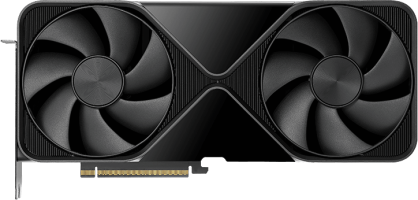

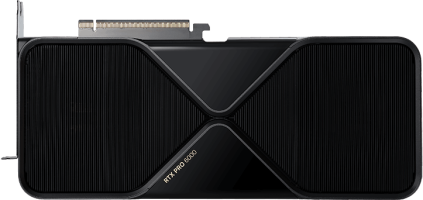

NVIDIA RTX PRO 6000 Workstation

The RTX PRO 6000 Workstation is a workstation-grade GPU from nvidia's Blackwell PRO W series, built on the  architecture using the GB202 chip. Equipped with 96 GB of GDDR7 memory on a 512-bit bus, it delivers 1792.0 GB/s of bandwidth at 28.0 Gbps.

Launched on 17 Mar, 2025, the RTX PRO 6000 Workstation carried a starting price of $8599.

Rent RTX PRO 6000 Workstation
Cost $0.93/h*
Vast
* Median price
Host RTX PRO 6000 Workstation
Earn $0.65/h*
Vast
* Median price

Information
PlatformWorkstation
ArchitectureBlackwell 2nd-gen
GenerationBlackwell PRO W
InterfacePCIe 5.0 x16
Core
NameGB202
FoundryTSMC
Process Node5 nm
Transistors92200 million
Die Size750 mm²
Density122.9 /mm²
GPU Core Config
Cores24064
TMUs752
ROPs192
Tensor Cores752
RT Cores188
Memory
TechnologyGDDR7
Size96 GB
Bus512 bit
Bandwidth1792 GB/s
Speed28 Gbps

Information
Platform	Workstation
Architecture	Blackwell 2nd-gen
Generation	Blackwell PRO W
Interface	PCIe 5.0 x16

Core
Name	GB202
Foundry	TSMC
Process Node	5 nm
Transistors	92200 million
Die Size	750 mm²
Density	122.9 /mm²

GPU Core Config
Cores	24064
TMUs	752
ROPs	192
Tensor Cores	752
RT Cores	188

Memory
Technology	GDDR7
Size	96 GB
Bus	512 bit
Bandwidth	1792 GB/s
Speed	28 Gbps

Clocks
Base clock1590 MHz
Boost Clock2617 MHz
Memory Clock1750 MHz
Power
12vhpwr1
TDP600 w
Recommended PSU1000 w
Display
DisplayPort4
Dimensions
Slots2
Length305 mm
Height137 mm

Clocks
Base clock	1590 MHz
Boost Clock	2617 MHz
Memory Clock	1750 MHz

Power
12vhpwr	1
TDP	600 w
Recommended PSU	1000 w

Display
DisplayPort	4

Dimensions
Slots	2
Length	305 mm
Height	137 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX PRO 6000 Blackwell Workstation Edition VCNRTXPRO6000-PB	2617 MHz		mm	mm	mm
