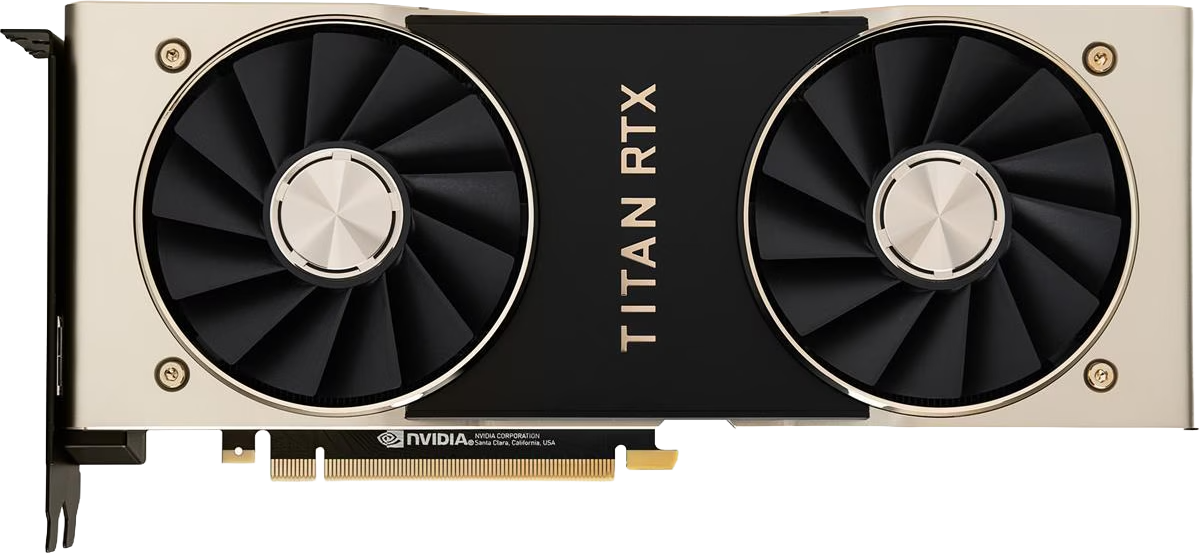

NVIDIA TITAN RTX

The TITAN RTX is a consumer-grade GPU from nvidia's GeForce RTX 20 series, built on the Turing architecture using the TU102 chip. Equipped with 24 GB of GDDR6 memory on a 384-bit bus, it delivers 672.0 GB/s of bandwidth at 14.0 Gbps.

Launched on 17 Dec, 2018, the TITAN RTX carried a starting price of $2499.

Rent TITAN RTX
Cost $0.12/h*
Vast
* Median price
Host TITAN RTX
Earn $0.09/h*
Vast
* Median price

Information
PlatformConsumer
ArchitectureTuring
GenerationGeForce RTX 20
Previous GenGeForce 10
Next GenGeForce RTX 30
InterfacePCIe 3.0 x16
Core
NameTU102
FoundryTSMC
Process Node12 nm
Transistors18600 million
Die Size754.0 mm²
Density24.7 /mm²
GPU Core Config
Cores4608
TMUs288
ROPs96
Memory
TechnologyGDDR6
Size24 GB
Bus384 bit
Bandwidth672.0 GB/s
Speed14.0 Gbps

Information
Platform	Consumer
Architecture	Turing
Generation	GeForce RTX 20
Previous Gen	GeForce 10
Next Gen	GeForce RTX 30
Interface	PCIe 3.0 x16

Core
Name	TU102
Foundry	TSMC
Process Node	12 nm
Transistors	18600 million
Die Size	754.0 mm²
Density	24.7 /mm²

GPU Core Config
Cores	4608
TMUs	288
ROPs	96

Memory
Technology	GDDR6
Size	24 GB
Bus	384 bit
Bandwidth	672.0 GB/s
Speed	14.0 Gbps

Clocks
Base clock1350 MHz
Boost Clock1770 MHz
Memory Clock1750 MHz
Power
8-pin2
TDP280 w
Recommended PSU600 w
Display
DisplayPort3
HDMI1
USB Type-C1
Dimensions
Slots2

Clocks
Base clock	1350 MHz
Boost Clock	1770 MHz
Memory Clock	1750 MHz

Power
8-pin	2
TDP	280 w
Recommended PSU	600 w

Display
DisplayPort	3
HDMI	1
USB Type-C	1

Dimensions
Slots	2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA TITAN RTX 900-1G150-2500-000	1770 MHz		mm	mm	mm
