NVIDIA TITAN V Database - Specs, information & files

NVIDIA TITAN V

Specs, info and data

The GPU Database

Featuring 230+ GPU models — and growing.

Database > GPUs > NVIDIA TITAN V

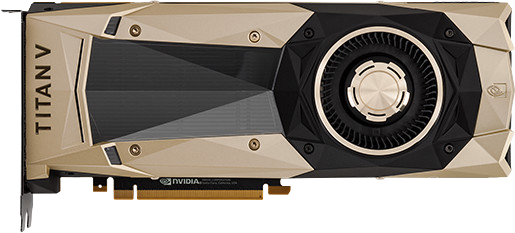

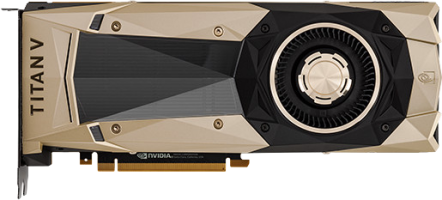

NVIDIA TITAN V

The TITAN V is a consumer-grade GPU from nvidia's Volta series, built on the Volta architecture using the GV100 chip. Equipped with 12 GB of HBM2 memory on a 3072-bit bus, it delivers 651.3 GB/s of bandwidth at 1.7 Gbps.

Launched on 6 Dec, 2017, the TITAN V carried a starting price of $2999.

Rent TITAN V
Cost $0.07/h*
Vast
* Median price
Host TITAN V
Earn $0.06/h*
Vast
* Median price

Information
PlatformConsumer
ArchitectureVolta
GenerationVolta
Previous GenGeForce 10
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGV100
FoundryTSMC
Process Node12 nm
Transistors21100 million
Die Size815.0 mm²
Density25.9 /mm²
GPU Core Config
Cores5120
TMUs320
ROPs96
Memory
TechnologyHBM2
Size12 GB
Bus3072 bit
Bandwidth651.3 GB/s
Speed1.7 Gbps

Information
Platform	Consumer
Architecture	Volta
Generation	Volta
Previous Gen	GeForce 10
Next Gen	GeForce RTX 20
Interface	PCIe 3.0 x16

Core
Name	GV100
Foundry	TSMC
Process Node	12 nm
Transistors	21100 million
Die Size	815.0 mm²
Density	25.9 /mm²

GPU Core Config
Cores	5120
TMUs	320
ROPs	96

Memory
Technology	HBM2
Size	12 GB
Bus	3072 bit
Bandwidth	651.3 GB/s
Speed	1.7 Gbps

Clocks
Base clock1200 MHz
Boost Clock1455 MHz
Memory Clock848 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort3 1.4a
HDMI1 2.0
Dimensions
Slots2
Length267 mm
Height111 mm
Width40 mm

Clocks
Base clock	1200 MHz
Boost Clock	1455 MHz
Memory Clock	848 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3 1.4a
HDMI	1 2.0

Dimensions
Slots	2
Length	267 mm
Height	111 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA TITAN V	1455 MHz	2	267 mm	111 mm	40 mm
