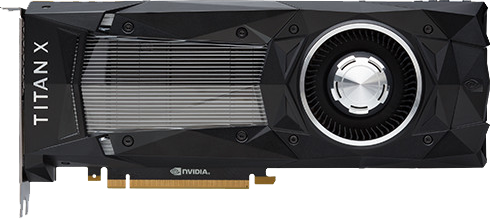

NVIDIA TITAN X Pascal

The TITAN X Pascal is a consumer-grade GPU from nvidia's GeForce 10 series, built on the  architecture using the GP102 chip. Equipped with 12 GB of GDDR5X memory on a 384-bit bus, it delivers 480.4 GB/s of bandwidth at 10.0 Gbps.

Launched on 1 Aug, 2016, the TITAN X Pascal carried a starting price of $1199.

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGP102
FoundryTSMC
Process Node16 nm
Transistors11800 million
Die Size471 mm²
Density25.1 /mm²
GPU Core Config
Cores3584
TMUs224
ROPs96
SMs28
Memory
TechnologyGDDR5X
Size12 GB
Bus384 bit
Bandwidth480.384 GB/s
Speed10.008 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Interface	PCIe 3.0 x16

Core
Name	GP102
Foundry	TSMC
Process Node	16 nm
Transistors	11800 million
Die Size	471 mm²
Density	25.1 /mm²

GPU Core Config
Cores	3584
TMUs	224
ROPs	96
SMs	28

Memory
Technology	GDDR5X
Size	12 GB
Bus	384 bit
Bandwidth	480.384 GB/s
Speed	10.008 Gbps

Clocks
Base clock1417 MHz
Boost Clock1531 MHz
Memory Clock1251 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort3 1.4a
HDMI1 2.0
DVI1
Dimensions
Slots2
Length267 mm
Height112 mm
Width40 mm

Clocks
Base clock	1417 MHz
Boost Clock	1531 MHz
Memory Clock	1251 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3 1.4a
HDMI	1 2.0
DVI	1

Dimensions
Slots	2
Length	267 mm
Height	112 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA TITAN X Pascal	1531 MHz	2	267 mm	112 mm	40 mm
