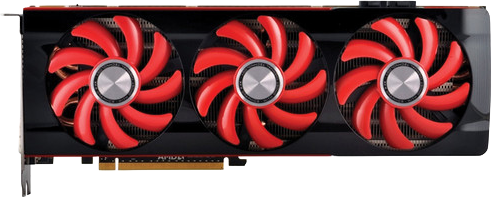

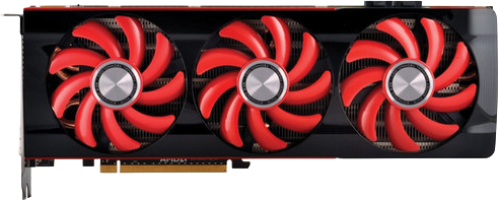

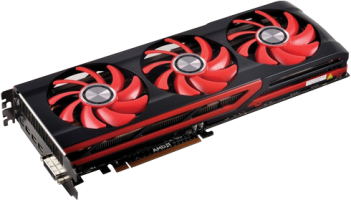

AMD Radeon HD 7990

The Radeon HD 7990 is a consumer-grade GPU from AMD's Southern Islands series, built on the GCN 1.0 architecture using the Malta chip. Equipped with 3 GB of GDDR5 memory on a 384-bit bus, it delivers 288.0 GB/s of bandwidth at 6.0 Gbps.

Launched on 23 Apr, 2013, the Radeon HD 7990 carried a starting price of $999.

GPUs.net

Information
PlatformConsumer
ArchitectureGCN 1.0
GenerationSouthern Islands
Previous GenNorthern Islands
Next GenSea Islands
InterfacePCIe 3.0 x16
Core
NameMalta
FoundryTSMC
Process Node28 nm
Transistors4 million
Die Size365.0 mm²
Density0.0 /mm²
GPU Core Config
Cores2048
Compute Units32
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size3 GB
Bus384 bit
Bandwidth288.0 GB/s
Speed6.0 Gbps

Information
Platform	Consumer
Architecture	GCN 1.0
Generation	Southern Islands
Previous Gen	Northern Islands
Next Gen	Sea Islands
Interface	PCIe 3.0 x16

Core
Name	Malta
Foundry	TSMC
Process Node	28 nm
Transistors	4 million
Die Size	365.0 mm²
Density	0.0 /mm²

GPU Core Config
Cores	2048
Compute Units	32
TMUs	128
ROPs	32

Memory
Technology	GDDR5
Size	3 GB
Bus	384 bit
Bandwidth	288.0 GB/s
Speed	6.0 Gbps

Clocks
Base clock950 MHz
Boost Clock1000 MHz
Memory Clock1500 MHz
Power
8-pin2
TDP375 w
Recommended PSU750 w

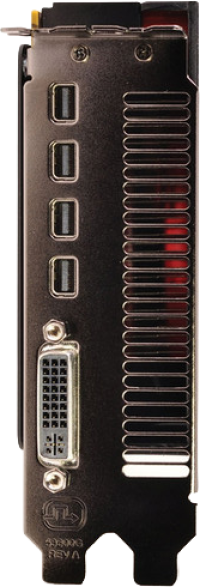

Display
Mini DisplayPort4
DVI1
Dimensions
Slots2
Length304 mm
Height106 mm
Width38 mm

Clocks
Base clock	950 MHz
Boost Clock	1000 MHz
Memory Clock	1500 MHz

Power
8-pin	2
TDP	375 w
Recommended PSU	750 w

Display
Mini DisplayPort	4
DVI	1

Dimensions
Slots	2
Length	304 mm
Height	106 mm
Width	38 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
MSI Radeon HD 7990 R7990-6GD5	1000 MHz	2	304 mm	106 mm	38 mm
