| Information | |
|---|---|
| Platform | Consumer |
| Architecture | GCN 1.0 |
| Generation | Southern Islands |
| Previous Gen | Northern Islands |
| Next Gen | Sea Islands |
| Interface | PCIe 3.0 x16 |
| Core | |
|---|---|
| Name | Malta |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 4 million |
| Die Size | 365.0 mm² |
| Density | 0.0 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 2048 |
| Compute Units | 32 |
| TMUs | 128 |
| ROPs | 32 |
| Memory | |
|---|---|
| Technology | GDDR5 |
| Size | 3 GB |
| Bus | 384 bit |
| Bandwidth | 288.0 GB/s |
| Speed | 6.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 950 MHz |
| Boost Clock | 1000 MHz |
| Memory Clock | 1500 MHz |
| Power | |
|---|---|
| 8-pin | 2 |
| TDP | 375 w |
| Recommended PSU | 750 w |
| Display | |
|---|---|

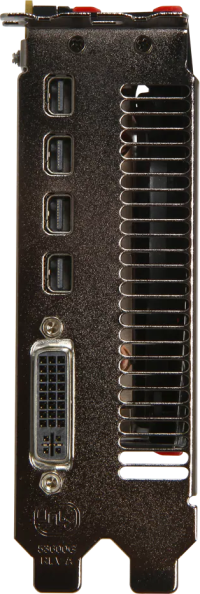

| Mini DisplayPort | 4 |
| DVI | 1 |
| DVI-I | 1 |
| Dimensions | |
|---|---|
| Slots | 2 |
| Length | 304 mm |
| Height | 106 mm |
| Width | 38 mm |
| GPU▲ | Boost Clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|
| 1000 MHz | 2 | 304 mm | 106 mm | 38 mm |
