Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 3080 12GB > Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB

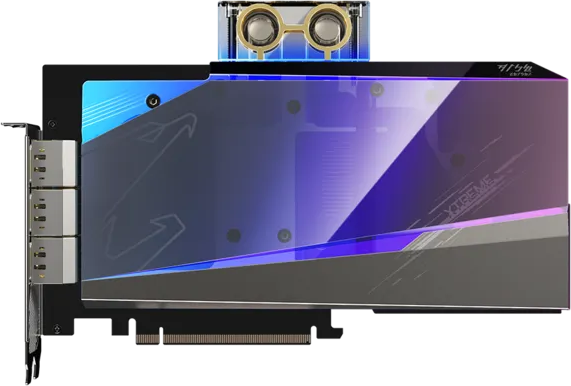

Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB - Front

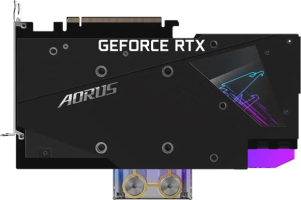

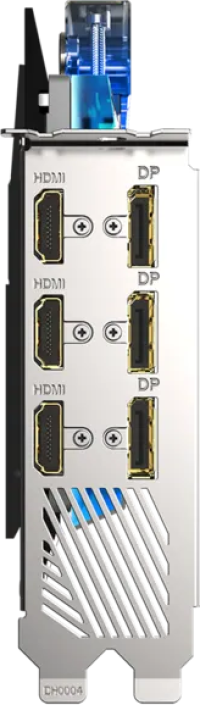

Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB - Front Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB - Rear Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB - Side Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB - Outputs
Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB
GV-N3080AORUSX WB-12GD
KEY FEATURE NVIDIA Ampere Streaming Multiprocessors 2nd Generation RT Cores 3rd Generation Tensor Cores Powered by GeForce RTX™ 3080 Integrated with 12GB GDDR6X 384-bit memory interface WATERFORCE Water Block cooling system Leak detection RGB Fusion 2.0 6 Outputs Protection metal back plate 4 Years Warranty (Online registration required) CORE CLOCK 1830 MHz (Reference Card: 1710 MHz)
Information
PlatformConsumer
ArchitectureAmpere
GenerationGeForce RTX 30
Previous GenGeForce RTX 20
Next GenGeForce RTX 40
InterfacePCIe 4.0 x16
Max temperature93 C
Core
NameGA102
FoundrySamsung
Process Node8 nm
Transistors28300 million
Die Size628.0 mm²
Density45.1 /mm²
GPU Core Config
Cores8960
TMUs280
ROPs96
Tensor Cores280
RT Cores70
Memory
TechnologyGDDR6X
Size12 GB
Bus384 bit
Bandwidth456.2 GB/s
Speed9.5 Gbps
Clocks
Base clock1260 MHz
Boost Clock1830 MHz 1710 MHz
Memory Clock1188 MHz
Power
8-pin2
TDP350 w
Recommended PSU750 w
Display
DisplayPort3 1.4a
HDMI3 2.1 / 2.0
Resolution7680x4320
Monitors4
Dimensions
Slots1.5
Length252 mm
Height163 mm
Width29 mm
Bios files
94.02.85.00.FA
N/A
Size: 2000 KB
Build: 2021-10-06
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Gigabyte AORUS GeForce RTX 3080 XTREME WATERFORCE WB
GV-N3080AORUSX WB-12GD
1830 MHz +7.0%1.5252 mm163 mm29 mm

Asus ROG Strix GeForce RTX 3080 OC EVA Edition
1710 MHz mm mm mm

Asus ROG Strix GeForce RTX 3080
1710 MHz mm mm mm

Asus ROG Strix GeForce RTX 3080 OC Edition
1710 MHz mm mm mm
