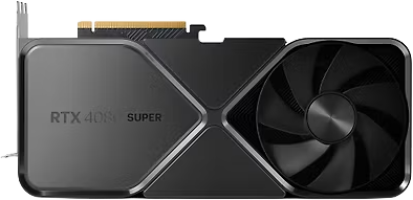

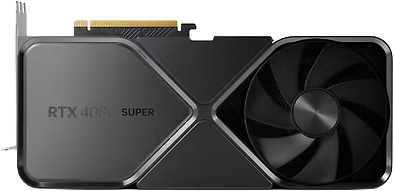

NVIDIA RTX 4080 Super

The RTX 4080 Super is a consumer-grade GPU from NVIDIA's GeForce RTX 40 series, built on the Ada Lovelace architecture using the AD103 chip. Equipped with 16 GB of GDDR6X memory on a 256-bit bus, it delivers 736.3 GB/s of bandwidth at 23.0 Gbps.

Launched on 30 Jan, 2024, the RTX 4080 Super carried a starting price of $999.

Rent RTX 4080 Super
Cost $0.16/h*
Vast
* Median price
Host RTX 4080 Super
Earn $0.12/h*
Vast
* Median price
Mine with RTX 4080 Super
Earn $0.29/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD103
FoundryTSMC
Process Node5 nm
Transistors45900 million
Die Size379.0 mm²
Density121.1 /mm²
GPU Core Config
Cores10240
TMUs320
ROPs112
Memory
TechnologyGDDR6X
Size16 GB
Bus256 bit
Bandwidth736.3 GB/s
Speed23.0 Gbps

Information
Platform	Consumer
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16
Max temperature	90 C

Core
Name	AD103
Foundry	TSMC
Process Node	5 nm
Transistors	45900 million
Die Size	379.0 mm²
Density	121.1 /mm²

GPU Core Config
Cores	10240
TMUs	320
ROPs	112

Memory
Technology	GDDR6X
Size	16 GB
Bus	256 bit
Bandwidth	736.3 GB/s
Speed	23.0 Gbps

Clocks
Base clock2295 MHz
Boost Clock2550 MHz
Memory Clock1438 MHz
Power
16-pin1
TDP320 w
Recommended PSU750 w
Display
DisplayPort3 1.4a
HDMI1 2.1
Dimensions
Slots3.1
Length304 mm
Height137 mm
Width60 mm

Clocks
Base clock	2295 MHz
Boost Clock	2550 MHz
Memory Clock	1438 MHz

Power
16-pin	1
TDP	320 w
Recommended PSU	750 w

Display
DisplayPort	3 1.4a
HDMI	1 2.1

Dimensions
Slots	3.1
Length	304 mm
Height	137 mm
Width	60 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Strix GeForce RTX 4080 SUPER OC Edition ROG-STRIX-RTX4080S-O16G-GAMING	2670 MHz +4.7%	3.5	357.6 mm	149.3 mm	70.1 mm
Asus ROG Strix GeForce RTX 4080 SUPER ROG-STRIX-RTX4080S-16G-GAMING	2580 MHz +1.2%	3.5	357.6 mm	149.3 mm	70.1 mm
Asus ROG Strix GeForce RTX 4080 SUPER White OC Edition ROG-STRIX-RTX4080S-O16G-WHITE	2670 MHz +4.7%	3.5	357.6 mm	149.3 mm	70.1 mm
Asus ROG Strix GeForce RTX 4080 SUPER White Edition ROG-STRIX-RTX4080S-16G-WHITE	2580 MHz +1.2%	3.5	357.6 mm	149.3 mm	70.1 mm
Asus GeForce RTX 4080 SUPER Noctua OC Edition RTX4080S-O16G-NOCTUA	2640 MHz +3.5%	4.4	310 mm	144.8 mm	87.5 mm
NVIDIA RTX 4080 Super Founders Edition	2550 MHz	3	304 mm	137 mm	60 mm
Asus ProArt GeForce RTX 4080 SUPER PROART-RTX4080S-16G	2580 MHz +1.2%	2.5	300 mm	120 mm	50 mm
Asus ProArt GeForce RTX 4080 SUPER OC Edition PROART-RTX4080S-O16G	2640 MHz +3.5%	2.5	300 mm	120 mm	50 mm
Asus TUF Gaming GeForce RTX 4080 SUPER TUF-RTX4080S-16G-GAMING	2580 MHz +1.2%	3.7	348.2 mm	150 mm	72.6 mm
Asus TUF Gaming GeForce RTX 4080 SUPER OC Edition TUF-RTX4080S-O16G-GAMING	2640 MHz +3.5%	3.7	348.2 mm	150 mm	72.6 mm
