Asus ProArt GeForce RTX 4080 SUPER
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 4080 Super > Asus ProArt GeForce RTX 4080 SUPER

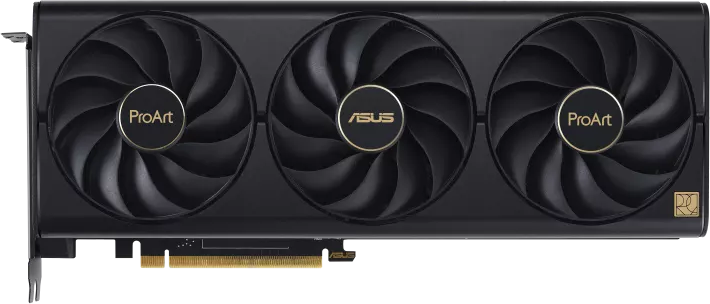

Asus ProArt GeForce RTX 4080 SUPER - Front

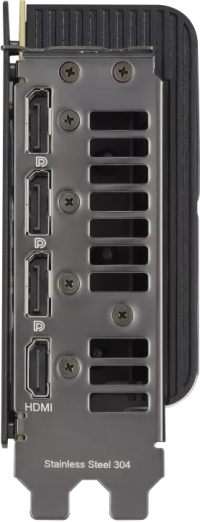

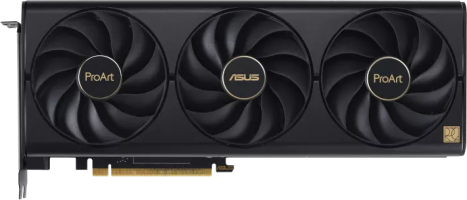

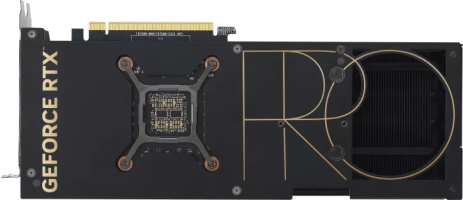

Asus ProArt GeForce RTX 4080 SUPER - Front Asus ProArt GeForce RTX 4080 SUPER - Rear Asus ProArt GeForce RTX 4080 SUPER - Side Asus ProArt GeForce RTX 4080 SUPER - Outputs
Asus ProArt GeForce RTX 4080 SUPER
PROART-RTX4080S-16G
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD103
FoundryTSMC
Process Node5 nm
Transistors45900 million
Die Size379.0 mm²
Density121.1 /mm²
GPU Core Config
Cores10240
TMUs320
ROPs112
Memory
TechnologyGDDR6X
Size16 GB
Bus256 bit
Bandwidth736.3 GB/s
Speed23.0 Gbps
Clocks
Base clock2295 MHz
Boost Clock2580 MHz 2550 MHz
Memory Clock1438 MHz
Power
16-pin1
TDP320 w
Recommended PSU850 w 750 w
Display
DisplayPort3 1.4a
HDMI1 2.1a
HDCP2.3
Dimensions
Slots2.5 3.1
Length300 mm 304 mm
Height120 mm 137 mm
Width50 mm 60 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus ROG Strix GeForce RTX 4080 SUPER OC Edition
ROG-STRIX-RTX4080S-O16G-GAMING
2670 MHz +4.7%3.5357.6 mm149.3 mm70.1 mm
Asus ROG Strix GeForce RTX 4080 SUPER
ROG-STRIX-RTX4080S-16G-GAMING
2580 MHz +1.2%3.5357.6 mm149.3 mm70.1 mm
Asus ROG Strix GeForce RTX 4080 SUPER White OC Edition
ROG-STRIX-RTX4080S-O16G-WHITE
2670 MHz +4.7%3.5357.6 mm149.3 mm70.1 mm
Asus ROG Strix GeForce RTX 4080 SUPER White Edition
ROG-STRIX-RTX4080S-16G-WHITE
2580 MHz +1.2%3.5357.6 mm149.3 mm70.1 mm
Asus GeForce RTX 4080 SUPER Noctua OC Edition
RTX4080S-O16G-NOCTUA
2640 MHz +3.5%4.4310 mm144.8 mm87.5 mm
NVIDIA RTX 4080 Super Founders Edition
2550 MHz3304 mm137 mm60 mm
Asus ProArt GeForce RTX 4080 SUPER
PROART-RTX4080S-16G
2580 MHz +1.2%2.5300 mm120 mm50 mm
Asus ProArt GeForce RTX 4080 SUPER OC Edition
PROART-RTX4080S-O16G
2640 MHz +3.5%2.5300 mm120 mm50 mm
Asus TUF Gaming GeForce RTX 4080 SUPER
TUF-RTX4080S-16G-GAMING
2580 MHz +1.2%3.7348.2 mm150 mm72.6 mm
Asus TUF Gaming GeForce RTX 4080 SUPER OC Edition
TUF-RTX4080S-O16G-GAMING
2640 MHz +3.5%3.7348.2 mm150 mm72.6 mm
