Asus ROG Ares II
Specs, info and data
The GPU Database
Featuring 290+ GPU models — and growing.
Database > GPUs > AMD Radeon HD 7970 > Asus ROG Ares II

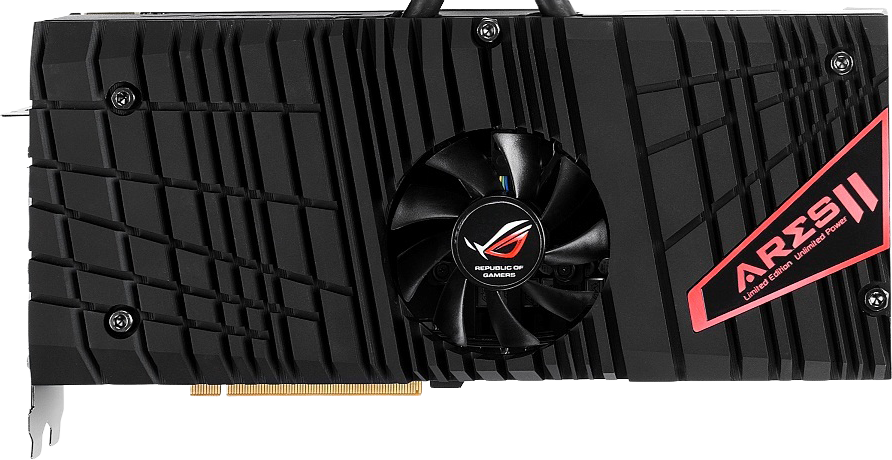

Asus ROG Ares II - Front

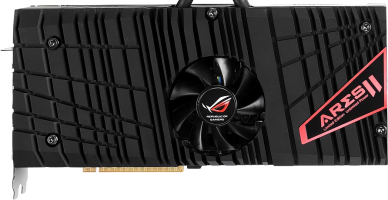

Asus ROG Ares II - Front
Asus ROG Ares II
ARES2-6GD5
Information
PlatformConsumer
ArchitectureGCN 1.0
GenerationSouthern Islands
Previous GenNorthern Islands
Next GenSea Islands
InterfacePCIe 3.0 x16
Core
NameTahiti
FoundryTSMC
Process Node28 nm
Transistors4313 million
Die Size352.0 mm²
Density12.3 /mm²
GPU Core Config
Cores2048 x2
TMUs128 x2
Compute Units32
ROPs32 x2
Memory
TechnologyGDDR5
Size3 GB x2
Bus384 bit x2
Bandwidth264.0 GB/s x2
Speed5.5 Gbps
Clocks
Base clock1100 MHz 925 MHz
Memory Clock1650 MHz 1375 MHz
Power
8-pin3
TDP250 w
Recommended PSU600 w
Display
HDMI1 1.4
Mini DisplayPort2
DVI1
Dimensions
Slots2
Length275 mm
Height111 mm
Width38 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus ROG Matrix HD 7970 Platinum
MATRIX-HD7970-P-3GD5
1100 MHz3279 mm
Asus ROG Matrix HD 7970
MATRIX-HD7970-3GD5
1050 MHz3279 mm
MSI Radeon HD 7970 LIGHTNING BE
R7970 LIGHTNING BE
1150 MHz2305 mm135 mm40 mm

XFX CORE Radeon HD 7970
FX-797A-TNFC
2275 mm112 mm36 mm

Asus ROG Ares II
ARES2-6GD5
