Gigabyte Radeon PRO W7900 Dual Slot AI TOP
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > AMD Radeon PRO W7900 > Gigabyte Radeon PRO W7900 Dual Slot AI TOP

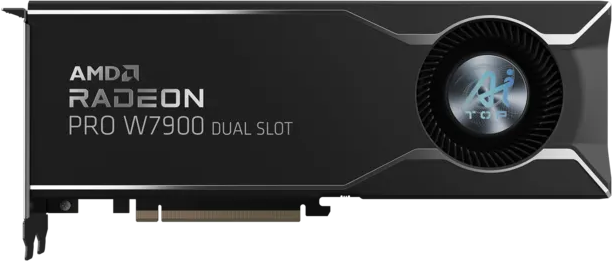

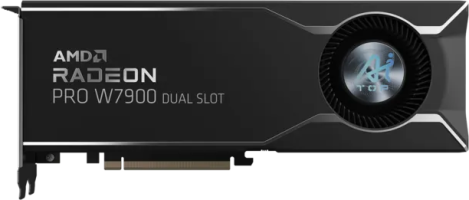

Gigabyte Radeon PRO W7900 Dual Slot AI TOP - Front

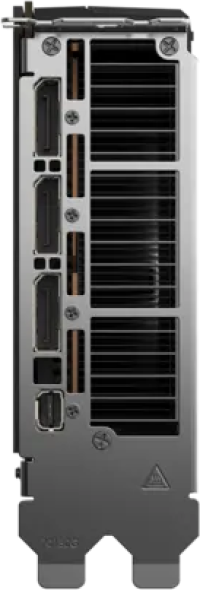

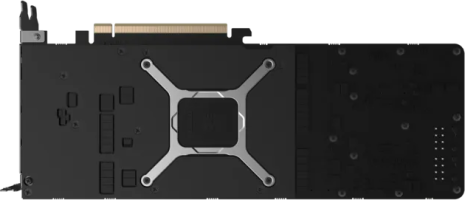

Gigabyte Radeon PRO W7900 Dual Slot AI TOP - Front Gigabyte Radeon PRO W7900 Dual Slot AI TOP - Rear Gigabyte Radeon PRO W7900 Dual Slot AI TOP - Side Gigabyte Radeon PRO W7900 Dual Slot AI TOP - Outputs
Gigabyte Radeon PRO W7900 Dual Slot AI TOP
W7900 AI TOP 48G
Information
PlatformWorkstation
ArchitectureRDNA3
GenerationRadeon Pro Navi
Previous GenRadeon Pro Vega
InterfacePCIe 4.0 x16
Core
NameNavi 31
FoundryTSMC
Process Node5 nm
Transistors57700 million
Die Size529.0 mm²
Density109.1 /mm²
GPU Core Config
Cores6144
TMUs384
ROPs192
Memory
TechnologyGDDR6
Size48 GB
Bus384 bit
Bandwidth864.0 GB/s
Speed18.0 Gbps
Clocks
Base clock1855 MHz
Boost Clock2495 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP295 w
Recommended PSU750 w 600 w
Display
DisplayPort3 2.1
Mini DisplayPort1
Dimensions
Slots2.1 2.6
Length293 mm 280 mm
Height126 mm 110 mm
Width42 mm 51 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Gigabyte Radeon PRO W7900 Dual Slot AI TOP
W7900 AI TOP 48G
2495 MHz2.1293 mm126 mm42 mm
