Name: Sapphire PULSE Radeon RX 6600
Brand: Sapphire
SKU: 11310-01-20G

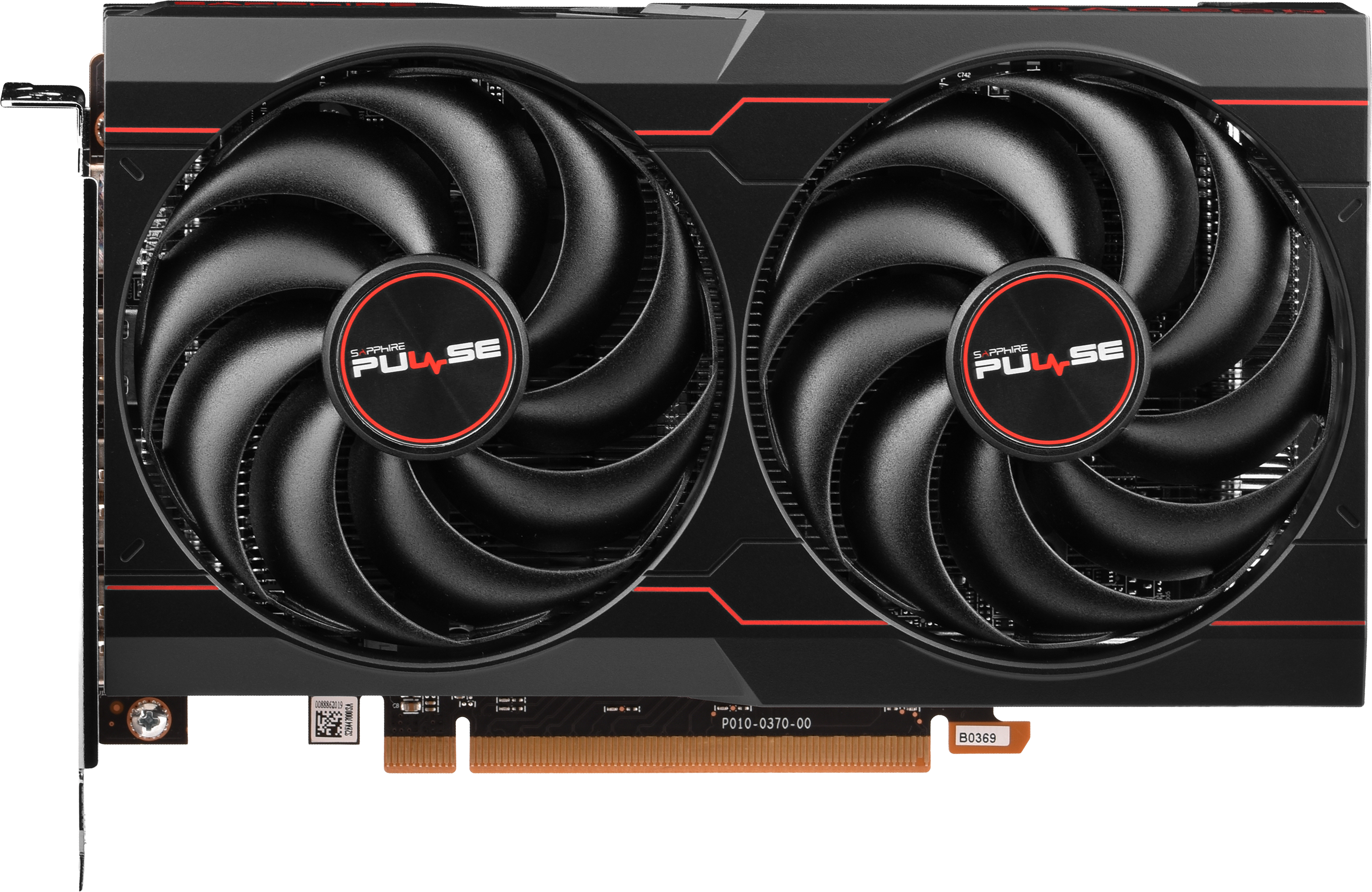

Sapphire PULSE Radeon RX 6600

Specs, info and data

The GPU Database

Featuring 280+ GPU models — and growing.

Database > GPUs > AMD RX 6600 > Sapphire PULSE Radeon RX 6600

Sapphire PULSE Radeon RX 6600
11310-01-20G
GPUs.net

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x8
Core
NameNavi 23
FoundryTSMC
Process Node7 nm
Transistors11060 million
Die Size237.0 mm²
Density46.7 /mm²
GPU Core Config
Cores1792
TMUs112
ROPs64
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Infinity Cache32 MB
Bandwidth224.0 GB/s
Speed14.0 Gbps

Clocks
Base clock1626 MHz
Game Clock2044 MHz
Boost Clock2491 MHz
Memory Clock1750 MHz
Power
8-pin1
TDP140 w 132 w
Recommended PSU500 w 300 w
Display
DisplayPort3 1.4
HDMI1
Dimensions
Slots2
Length193 mm
Height120 mm
Width40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Radeon RX 6600 Challenger D RX6600 CLD 8G	2491 MHz	2.1	269 mm	132 mm	41 mm
PowerColor Fighter AMD Radeon RX 6600 AXRX 6600 8GBD6-3DH	2491 MHz	2	200 mm	111 mm	39 mm
Asus Dual Radeon RX 6600 DUAL-RX6600-8G	2491 MHz	2.5	243 mm	134 mm	49 mm
Sapphire PULSE Radeon RX 6600 11310-01-20G	2491 MHz	2	193 mm	120 mm	40 mm

Disclaimer! Hashrate.no utilizes some affiliate and referral links which may generate a small commission. Thanks for supporting us! We also use cookies to track users' input, like, but not limited to power cost, sorting, filters, and prices. We make no warranties of any kind in relation to our content, including but not limited to accuracy and updatedness. Hashrate.no are NOT responsible for any damage; always set your overclock at YOUR own risk and please gain knowledge and do your research! We are not responsible for external links and information that is found there. © Lineo AS 2021-2026

Information
Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next Gen	RX 7000
Interface	PCIe 4.0 x8

Core
Name	Navi 23
Foundry	TSMC
Process Node	7 nm
Transistors	11060 million
Die Size	237.0 mm²
Density	46.7 /mm²

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Infinity Cache	32 MB
Bandwidth	224.0 GB/s
Speed	14.0 Gbps

Clocks
Base clock	1626 MHz
Game Clock	2044 MHz
Boost Clock	2491 MHz
Memory Clock	1750 MHz

GPU Core Config
Cores	1792
TMUs	112
ROPs	64

Power
8-pin	1
TDP	140 w 132 w
Recommended PSU	500 w 300 w

Display
DisplayPort	3 1.4
HDMI	1

Dimensions
Slots	2
Length	193 mm
Height	120 mm
Width	40 mm
