Name: ASRock RX 7600 Phantom Gaming OC
Brand: ASRock
SKU: RX7600 PG 8GO

ASRock RX 7600 Phantom Gaming OC

Specs, info and data

The GPU Database

Featuring 290+ GPU models — and growing.

Database > GPUs > AMD RX 7600 > ASRock RX 7600 Phantom Gaming OC

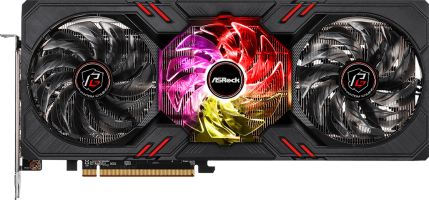

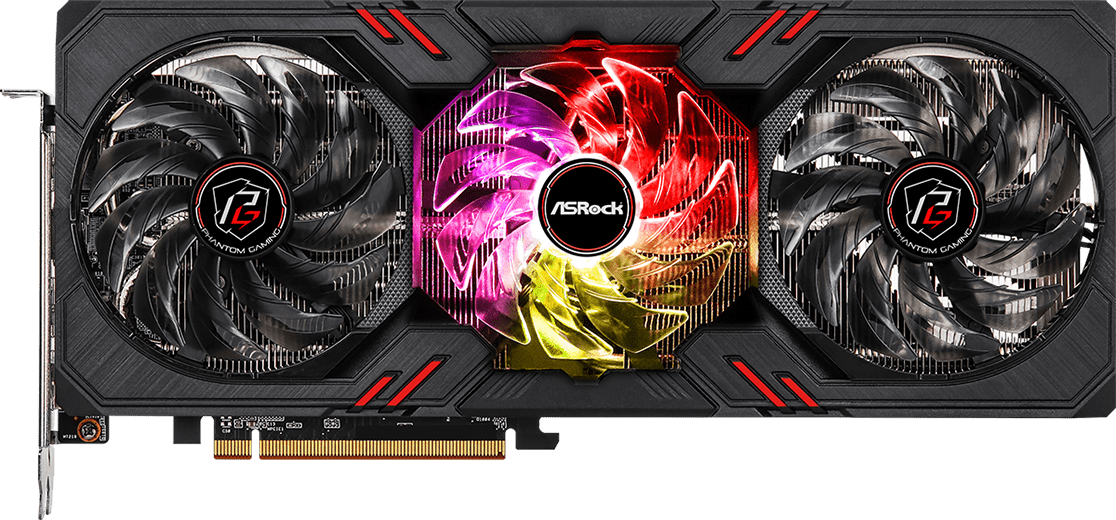

ASRock RX 7600 Phantom Gaming OC - Front

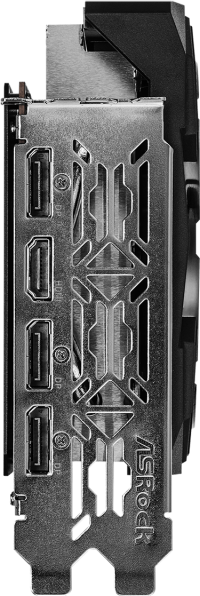

ASRock RX 7600 Phantom Gaming OC - Outputs

ASRock RX 7600 Phantom Gaming OC
RX7600 PG 8GO
GPUs.net

Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x8
Core
NameNavi 33
FoundryTSMC
Process Node6 nm
Transistors13300 million
Die Size204.0 mm²
Density65.2 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
RT Cores32
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Infinity Cache32 MB
Bandwidth72.0 GB/s
Speed4.5 Gbps

Clocks
Base clock1720 MHz
Game Clock2355 MHz
Boost Clock2755 MHz 2655 MHz
Memory Clock2250 MHz
Power
8-pin1
TDP165 w
Recommended PSU600 w 450 w
Display
DisplayPort3 2.1
HDMI1 2.1
Dimensions
Slots2.4
Length305 mm
Height131 mm
Width48 mm
Weight894 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Gigabyte Radeon RX 7600 GAMING OC GV-R76GAMING OC-8GD	2755 MHz +3.8%	2.5	282 mm	115 mm	50 mm
Sapphire PULSE AMD Radeon RX 7600 11324-01-20G	2755 MHz +3.8%	2.2	240 mm	107.1 mm	44.1 mm
ASRock Radeon RX 7600 Steel Legend OC RX7600 SL 8GO	2725 MHz +2.6%	2.3	303 mm	131 mm	45 mm
XFX SPEEDSTER SWFT 210 AMD Radeon RX 7600 Core Edition RX-76PSWFTFA	2655 MHz	2.1	241 mm	131 mm	41 mm
XFX SPEEDSTER SWFT 210 AMD Radeon RX 7600 CoreEdition RX-76PSWFTFY	2655 MHz	2.1	241 mm	131 mm	41 mm
Asus Dual Radeon RX 7600 EVO OC Edition DUAL-RX7600-O8G-EVO	2715 MHz +2.3%	2.5	229 mm	123 mm	49 mm
ASRock Radeon RX 7600 Challenger OC RX7600 CL 8GO	2695 MHz +1.5%	2	269.2 mm	131.8 mm	40.3 mm
PowerColor Hellhound AMD Radeon RX 7600 RX7600 8G-L/OC	2695 MHz +1.5%	2.3	223 mm	132 mm	45 mm
XFX SPEEDSTER QICK 308 AMD Radeon RX 7600 Black Edition RX-76PQICKBY	2755 MHz +3.8%	2.5	274 mm	114 mm	50 mm
ASRock PREDATOR BIFROST Radeon RX 7600 OC APBF-ARX7600-8G-OC	2726 MHz +2.7%	2	267 mm	118 mm	40 mm
Acer Predator BiFrost AMD Radeon RX 7600 O DP.Z36WW.P02	2726 MHz +2.7%	2	267 mm	118 mm
Asus ROG Strix Radeon RX 7600 OC Edition ROG-STRIX-RX7600-O8G-GAMING	2755 MHz +3.8%	3	281 mm	135 mm	59 mm
PowerColor Fighter AMD Radeon RX 7600 RX7600 8G-F	2655 MHz	2	200 mm	111 mm	39 mm
ASRock RX 7600 Phantom Gaming OC RX7600 PG 8GO	2755 MHz +3.8%	2.4	305 mm	131 mm	48 mm
