Gigabyte Radeon RX 7600 XT GAMING OC
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.
Database > GPUs > AMD RX 7600 XT > Gigabyte Radeon RX 7600 XT GAMING OC

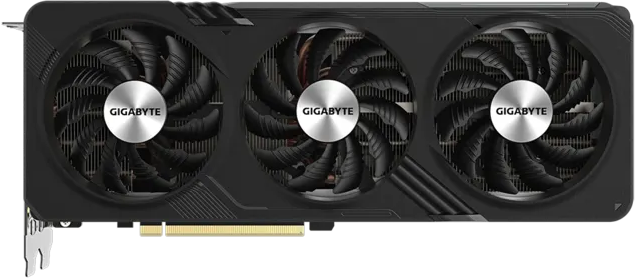

Gigabyte Radeon RX 7600 XT GAMING OC - Front

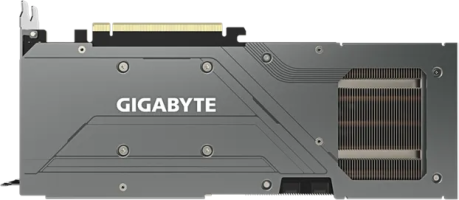

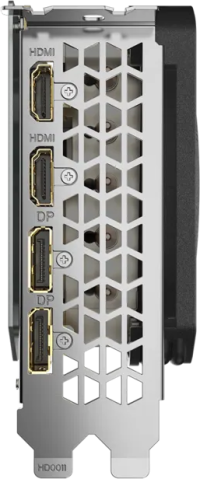

Gigabyte Radeon RX 7600 XT GAMING OC - Front Gigabyte Radeon RX 7600 XT GAMING OC - Rear Gigabyte Radeon RX 7600 XT GAMING OC - Side Gigabyte Radeon RX 7600 XT GAMING OC - Outputs
Gigabyte Radeon RX 7600 XT GAMING OC
GV-R76XTGAMING OC-16GD
TechnologyGDDR6
Size16 GB
Bus128 bit
Bandwidth288.0 GB/s
Speed18.0 Gbps
Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x8
Core
NameNavi 33
FoundryTSMC
Process Node6 nm
Transistors13300 million
Die Size204.0 mm²
Density65.2 /mm²
GPU Core Config
Cores2048
TMUs128
ROPs64
RT Cores32
Clocks
Base clock1980 MHz
Game Clock2539 MHz 2470 MHz
Boost Clock2810 MHz 2755 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP190 w
Recommended PSU600 w 500 w
Display
DisplayPort2 2.1
HDMI2 2.1a
Dimensions
Slots2.7
Length281.4 mm
Height116.6 mm
Width52.6 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Gigabyte Radeon RX 7600 XT GAMING OC
GV-R76XTGAMING OC-16GD
2810 MHz +2.0%2.7281.4 mm116.6 mm52.6 mm
Asus Dual Radeon RX 7600 XT OC Edition
DUAL-RX7600XT-O16G
2801 MHz +1.7%2.5227.2 mm132.3 mm49.6 mm
