ASRock Radeon RX 7700 XT Challenger OC
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > AMD RX 7700 XT > ASRock Radeon RX 7700 XT Challenger OC

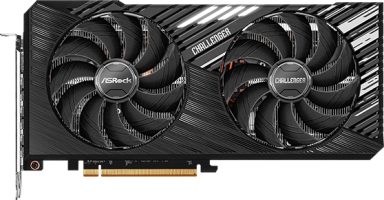

ASRock Radeon RX 7700 XT Challenger OC - Front

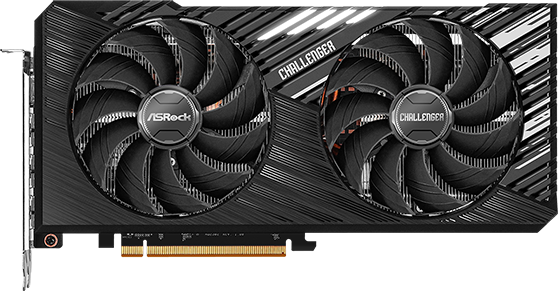

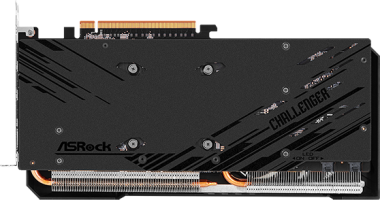

ASRock Radeon RX 7700 XT Challenger OC - Front ASRock Radeon RX 7700 XT Challenger OC - Rear ASRock Radeon RX 7700 XT Challenger OC - Side
ASRock Radeon RX 7700 XT Challenger OC
RX7700XT CL 12GO
Available at Newegg from $409.99. Buy now!
Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x16
Core
NameNavi 32
FoundryTSMC
Process Node5 nm
Transistors28100 million
Die Size346.0 mm²
Density81.2 /mm²
GPU Core Config
Cores3456
TMUs216
ROPs96
RT Cores54
Memory
TechnologyGDDR6
Size12 GB
Bus192 bit
Bandwidth432.0 GB/s
Speed18.0 Gbps
Clocks
Base clock1435 MHz
Game Clock2226 MHz 2171 MHz
Boost Clock2584 MHz 2544 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP245 w
Recommended PSU750 w 550 w
Display
DisplayPort3 2.1
HDMI1 2.1
Dimensions
Slots2.6
Length267 mm
Height130 mm
Width51 mm
Weight985 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
XFX Speedster QICK 319 Radeon RX 7700 XT Black Edition
RX-77TQICKB9
2599 MHz +2.2%2.6335 mm130 mm52 mm
Asus Dual Radeon RX 7700 XT OC Edition
DUAL-RX7700XT-O12G
2599 MHz +2.2%2.5279.9 mm133.9 mm49.3 mm
ASRock Radeon RX 7700 XT Challenger OC
RX7700XT CL 12GO
2584 MHz +1.6%2.6267 mm130 mm51 mm
