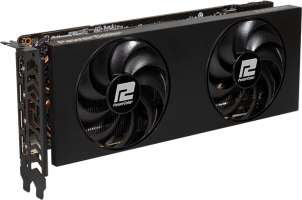

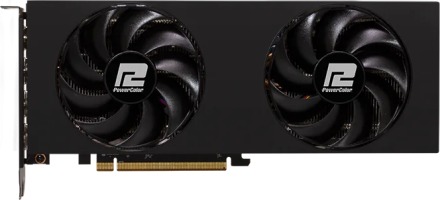

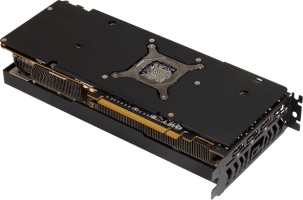

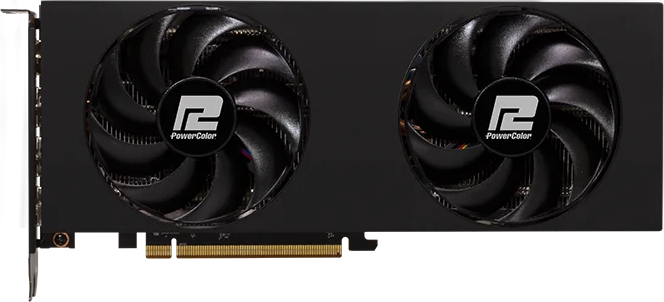

PowerColor Radeon RX 7800 XT
RX7800XT 16G-P
Available at Amazon from $569.99. Buy now!
GPUs.net

Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x16
Core
NameNavi 32
FoundryTSMC
Process Node5 nm
Transistors28100 million
Die Size346.0 mm²
Density81.2 /mm²
GPU Core Config
Cores3840
TMUs240
ROPs96
RT Cores60
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Bandwidth624.1 GB/s
Speed19.5 Gbps

Clocks
Base clock1295 MHz
Game Clock2124 MHz
Boost Clock2430 MHz
Memory Clock2438 MHz
Power
8-pin2
TDP260 w
Recommended PSU750 w 600 w

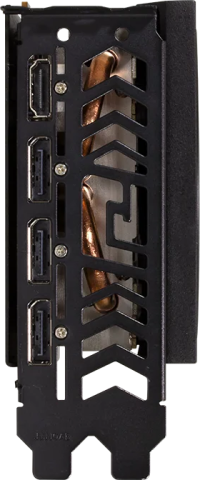

Display
DisplayPort3 2.1
HDMI1 2.1
Dimensions
Slots2.5
Length274 mm
Height125 mm
Width50 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus TUF Gaming Radeon RX 7800 XT OC Edition TUF-RX7800XT-O16G-GAMING	2565 MHz +5.6%	3	319.8 mm	150.9 mm	59.2 mm
ASRock Radeon RX 7800 XT Challenger OC RX7800XT CL 16GO	2475 MHz +1.9%	2.6	267 mm	130 mm	51 mm
Gigabyte Radeon RX 7800 XT GAMING OC GV-R78XTGAMING OC-16GD	2565 MHz +5.6%	2.8	302 mm	130 mm	56 mm
Sapphire NITRO+ AMD Radeon RX 7800 XT 11330-01-20G	2565 MHz +5.6%	3.1	320 mm	134.9 mm	61.6 mm
PowerColor Radeon RX 7800 XT RX7800XT 16G-P	2430 MHz	2.5	274 mm	125 mm	50 mm
XFX Speedster MERC 319 Radeon RX 7800 XT BLACK Edition RX-78TMERCB9	2565 MHz +5.6%	2.9	326 mm	126 mm	58 mm
XFX Speedster QICK 319 Radeon RX 7800 XT Core Edition White RX-78TQICKW9	2430 MHz	2.6	335 mm	130 mm	52 mm
