ASRock Radeon RX 7900 XT Phantom Gaming OC
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > AMD RX 7900 XT > ASRock Radeon RX 7900 XT Phantom Gaming OC

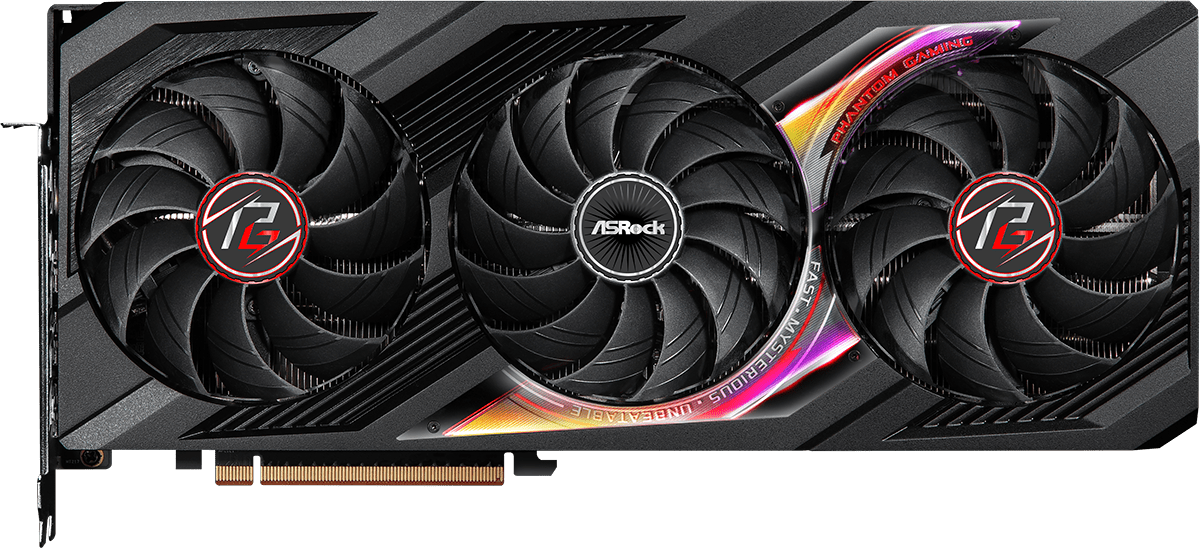

ASRock Radeon RX 7900 XT Phantom Gaming OC - Front

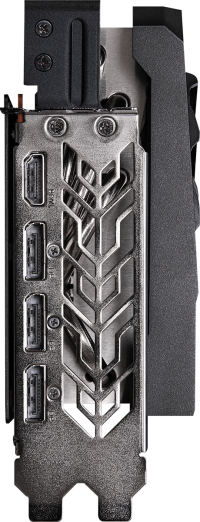

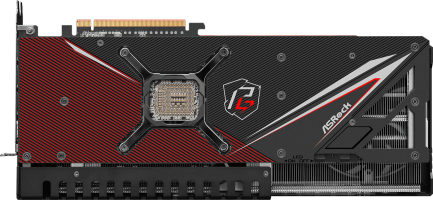

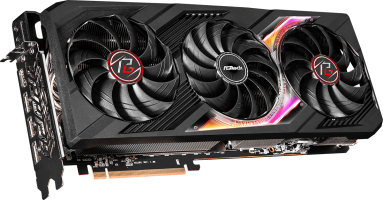

ASRock Radeon RX 7900 XT Phantom Gaming OC - Front ASRock Radeon RX 7900 XT Phantom Gaming OC - Rear ASRock Radeon RX 7900 XT Phantom Gaming OC - Side ASRock Radeon RX 7900 XT Phantom Gaming OC - Outputs
ASRock Radeon RX 7900 XT Phantom Gaming OC
RX7900XT PG 20GO
Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x16
Core
NameNavi 31
FoundryTSMC
Process Node5 nm
Transistors57700 million
Die Size529.0 mm²
Density109.1 /mm²
GPU Core Config
Cores5375
Compute Units84
TMUs336
ROPs192
RT Cores84
Memory
TechnologyGDDR6
Size20 GB
Bus320 bit
Infinity Cache80 MB
Bandwidth800.0 GB/s
Speed20.0 Gbps
Clocks
Base clock1500 MHz
Game Clock2075 MHz
Boost Clock2450 MHz 2394 MHz
Memory Clock2500 MHz
Power
8-pin2
TDP300 w
Recommended PSU750 w 700 w
Display
DisplayPort3 2.1
HDMI1 2.1
Dimensions
Slots2.9
Length330 mm
Height140 mm
Width57.6 mm
Weight1450 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
XFX SPEEDSTER MERC 310 AMD Radeon RX 7900 XT
RX-79TMERCU9
2535 MHz +5.9%2.8344 mm128 mm55 mm
XFX RADEON RX 7900 XT Gaming Graphics Card
RX-79TMBABF9
2400 MHz +0.3%2.6276.4 mm112.6 mm51.2 mm
PowerColor Hellhound AMD Radeon RX 7900 XT
RX7900XT 20G-L/OC
2500 MHz +4.4%3.1320 mm118.5 mm62 mm
PowerColor AMD Radeon RX 7900 XT
RX7900XT 20G
2400 MHz +0.3%2.6276.4 mm112.7 mm51.25 mm
Asus TUF Gaming Radeon RX 7900 XT OC Edition
TUF-RX7900XT-O20G-GAMING
2535 MHz +5.9%3.7352.9 mm158.2 mm72.6 mm
ASRock Radeon RX 7900 XT Phantom Gaming OC
RX7900XT PG 20GO
2450 MHz +2.3%2.9330 mm140 mm57.6 mm
