ASRock Intel Arc Pro B70 Creator
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.

Database > GPUs > Intel Arc Pro B70 > ASRock Intel Arc Pro B70 Creator

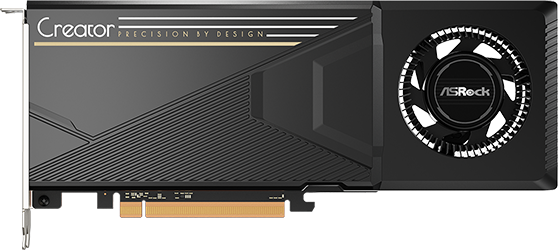

ASRock Intel Arc Pro B70 Creator - Front
ASRock Intel Arc Pro B70 Creator - Front ASRock Intel Arc Pro B70 Creator - Rear ASRock Intel Arc Pro B70 Creator - Side ASRock Intel Arc Pro B70 Creator - Outputs
ASRock Intel Arc Pro B70 Creator
B70 CT 32G

Available at TechAmerica from $1312.00. Buy now!


Information
PlatformWorkstation
ArchitectureBattlemage
GenerationArc B
Previous GenArc A
InterfacePCIe 5.0 x16
Core
NameBMG-G31
FoundryTSMC
Process Node5 nm
GPU Core Config
RT Cores32
Memory
TechnologyGDDR6
Size32 GB
Bus256 bit
Bandwidth608.3 GB/s
Speed19.0 Gbps
Clocks
Base clock2280 MHz
Boost Clock2540 MHz 2800 MHz
Memory Clock2376 MHz
Power
16-pin1
TDP230 w
Recommended PSU550 w
Display
DisplayPort4 2.1
Dimensions
Slots2
Length271 mm
Height112 mm
Width39 mm
Weight1057 g

Models
GPUBoost ClockSlotsLengthHeightWidth
2800 MHz2.1289 mm120 mm42 mm
2800 MHz
2540 MHz -9.3%2271 mm112 mm39 mm
