XFX GeForce 8800 GTS
Specs, info and data
The GPU Database
Featuring 290+ GPU models — and growing.
Database > GPUs > NVIDIA GeForce 8800 GTS > XFX GeForce 8800 GTS

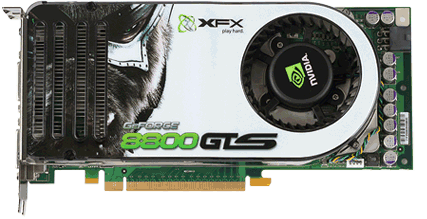

XFX GeForce 8800 GTS - Front

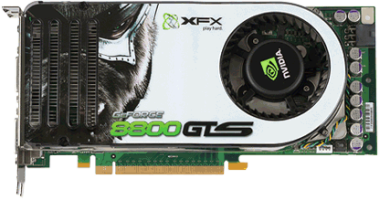

XFX GeForce 8800 GTS - Front
XFX GeForce 8800 GTS
PV-T80G-THF9
Information
PlatformConsumer
ArchitectureTesla
GenerationGeForce 8
Previous GenGeForce 7
Next GenGeForce 9
InterfacePCIe 1.0 x16
Core
NameG80
FoundryTSMC
Process Node90 nm
Transistors681 million
Die Size484.0 mm²
Density1.4 /mm²
GPU Core Config
Cores96
TMUs24
ROPs20
Memory
TechnologyGDDR3
Size0.625 GB
Bus320 bit
Clocks
Base clock513 MHz
Shader Clock1188 MHz
Boost Clock792 MHz
Power
6-pin1
Display
DVI2
S-Video1
Dimensions
Slots2
Length231 mm
Height111 mm
Width36 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
XFX GeForce 8800 GTS
PV-T80G-THF9
 -100.0%
