Asus ROG Poseidon GTX 1080 Ti Platinum
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 1080 Ti > Asus ROG Poseidon GTX 1080 Ti Platinum

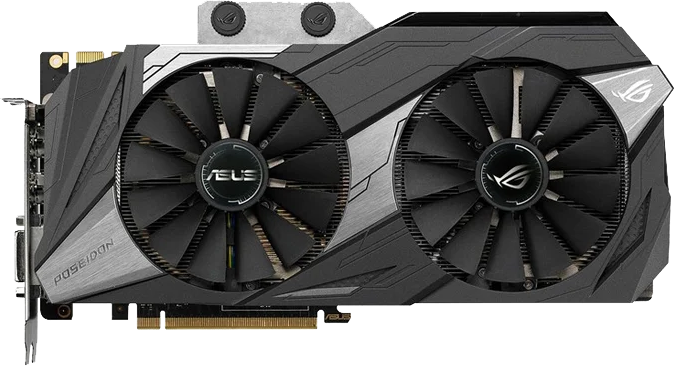

Asus ROG Poseidon GTX 1080 Ti Platinum - Front

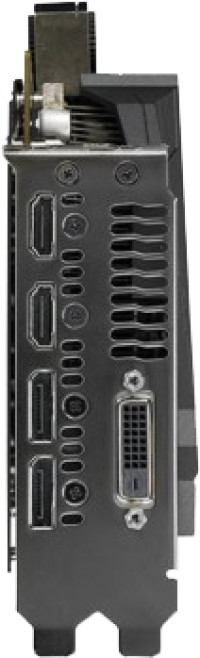

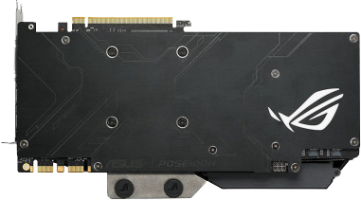

Asus ROG Poseidon GTX 1080 Ti Platinum - Front Asus ROG Poseidon GTX 1080 Ti Platinum - Rear Asus ROG Poseidon GTX 1080 Ti Platinum - Side Asus ROG Poseidon GTX 1080 Ti Platinum - Outputs
Asus ROG Poseidon GTX 1080 Ti Platinum
ROG-POSEIDON-GTX1080TI-P11G-GAMING
Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
Interface PCIe 3.0 x16
Core
NameGP102
FoundryTSMC
Process Node16 nm
Transistors11800 million
Die Size471.0 mm²
Density25.1 /mm²
GPU Core Config
Cores3584
TMUs224
ROPs88
Memory
TechnologyGDDR5X
Size11 GB
Bus352 bit
Bandwidth484.4 GB/s
Speed11.0 Gbps
Clocks
Base clock1595 MHz 1481 MHz
Boost Clock1708 MHz 1582 MHz
Memory Clock1376 MHz
Power
8-pin2
TDP250 w
Recommended PSU600 w
Display
DisplayPort2 1.4a
HDMI2 2.0
DVI-D DL1
Dimensions
Slots2
Length298 mm 266.7 mm
Height111.2 mm
Width40 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
PNY GeForce GTX 1080 TI XLR8
1582 MHz
Gigabyte GTX 1080 Ti
1632 MHz +3.2%2
Asus ROG Strix GTX 1080 Ti
ROG-STRIX-GTX1080TI-O11G-GAMING - SuG
1607 MHz +1.6%
NVIDIA GTX 1080 Ti Founders Edition
900-1G611-0050-000
1582 MHz2266.7 mm111.2 mm40 mm
MSI GeForce GTX 1080 Ti LIGHTNING Z
1721 MHz +8.8%3.1320 mm140 mm61 mm
EVGA GTX 1080 Ti Kingpin Edition
11G-P4-6798-KR
1695 MHz +7.1%2299.7 mm142.7 mm
Asus ROG Poseidon GTX 1080 Ti Platinum
ROG-POSEIDON-GTX1080TI-P11G-GAMING
1708 MHz +8.0%2298 mm
