Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 1660 Ti > Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition

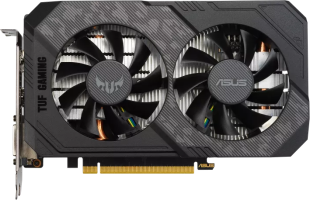

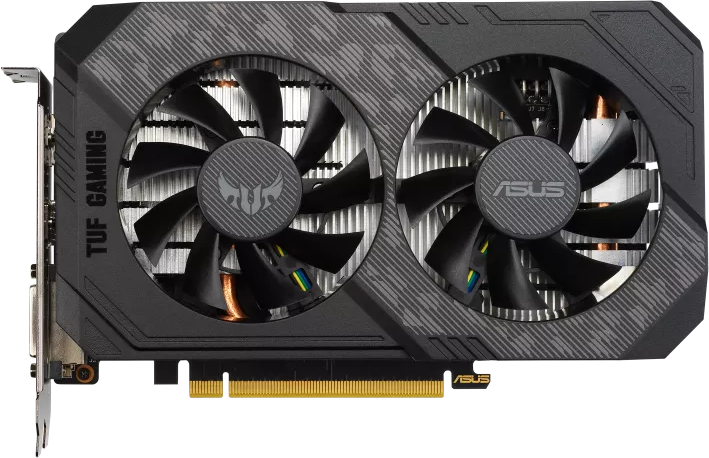

Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition - Front

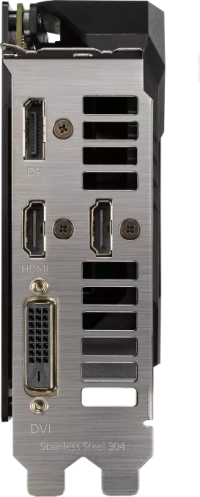

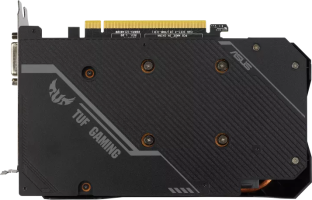

Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition - Front Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition - Rear Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition - Side Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition - Outputs
Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition
TUF-GTX1660TI-O6G-EVO-GAMING
Available at TechAmerica from $359.00. Buy now!
Information
PlatformConsumer
ArchitectureTuring
GenerationGeForce 16
Previous GenGeForce 10
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Max temperature95 C
Core
NameTU116
FoundryTSMC
Process Node12 nm
Transistors6600 million
Die Size284.0 mm²
Density23.2 /mm²
GPU Core Config
Cores1536
TMUs96
ROPs48
Memory
TechnologyGDDR6
Size6 GB
Bus192 bit
Bandwidth288.0 GB/s
Speed12.0 Gbps
Clocks
Base clock1500 MHz
Boost Clock1845 MHz 1770 MHz
Memory Clock1500 MHz
Power
8-pin1
TDP120 w
Recommended PSU450 w
Display
DisplayPort1 1.4a
HDMI2 2.0b
HDCP2.2
DVI-D DL1
Resolution7680 x 4320
Dimensions
Slots2.3 2
Length206 mm 145 mm
Height124 mm 111 mm
Width46 mm 40 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus TUF Gaming GeForce GTX 1660 Ti EVO OC Edition
TUF-GTX1660TI-O6G-EVO-GAMING
1845 MHz +4.2%2.3206 mm124 mm46 mm
