Asus ROG Matrix GTX 285

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 285 > Asus ROG Matrix GTX 285

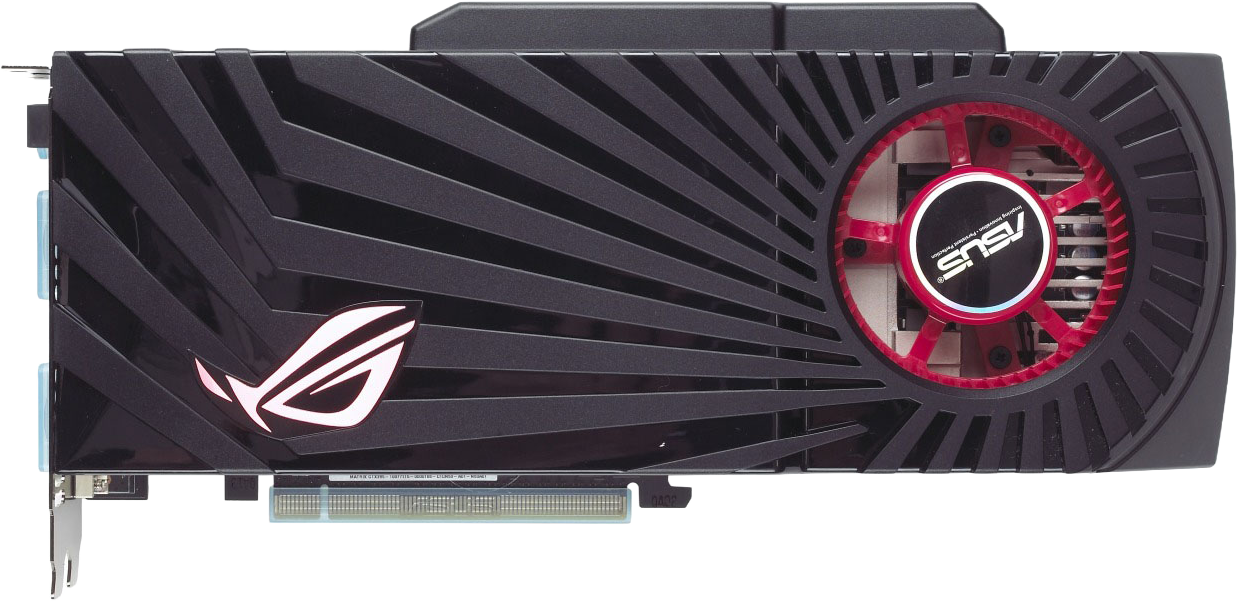

Asus ROG Matrix GTX 285

Information
PlatformConsumer
ArchitectureTesla 2.0
GenerationGeForce 200
Core
NameGT200B
FoundryTSMC
Process Node55 nm
Transistors1400 million
Die Size470 mm²
Density3.0 /mm²
GPU Core Config
Cores240
TMUs80
ROPs32
SMs30
Memory
TechnologyGDDR3
Size1 GB
Bus512 bit
Bandwidth158.976 GB/s
Speed2.484 Gbps

Information
Platform	Consumer
Architecture	Tesla 2.0
Generation	GeForce 200

Core
Name	GT200B
Foundry	TSMC
Process Node	55 nm
Transistors	1400 million
Die Size	470 mm²
Density	3.0 /mm²

GPU Core Config
Cores	240
TMUs	80
ROPs	32
SMs	30

Memory
Technology	GDDR3
Size	1 GB
Bus	512 bit
Bandwidth	158.976 GB/s
Speed	2.484 Gbps

Clocks
Base clock648 MHz
Shader Clock1476 MHz
Boost Clock1508 MHz
Memory Clock1242 MHz
Power
TDP204 w
Recommended PSU600 w
Display
DVI2
S-Video1
Dimensions
Slots2

Clocks
Base clock	648 MHz
Shader Clock	1476 MHz
Boost Clock	1508 MHz
Memory Clock	1242 MHz

Power
TDP	204 w
Recommended PSU	600 w

Display
DVI	2
S-Video	1

Dimensions
Slots	2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix GTX 285	1508 MHz		mm	mm	mm
