MSI GeForce GTX 460 Hawk
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 460 > MSI GeForce GTX 460 Hawk

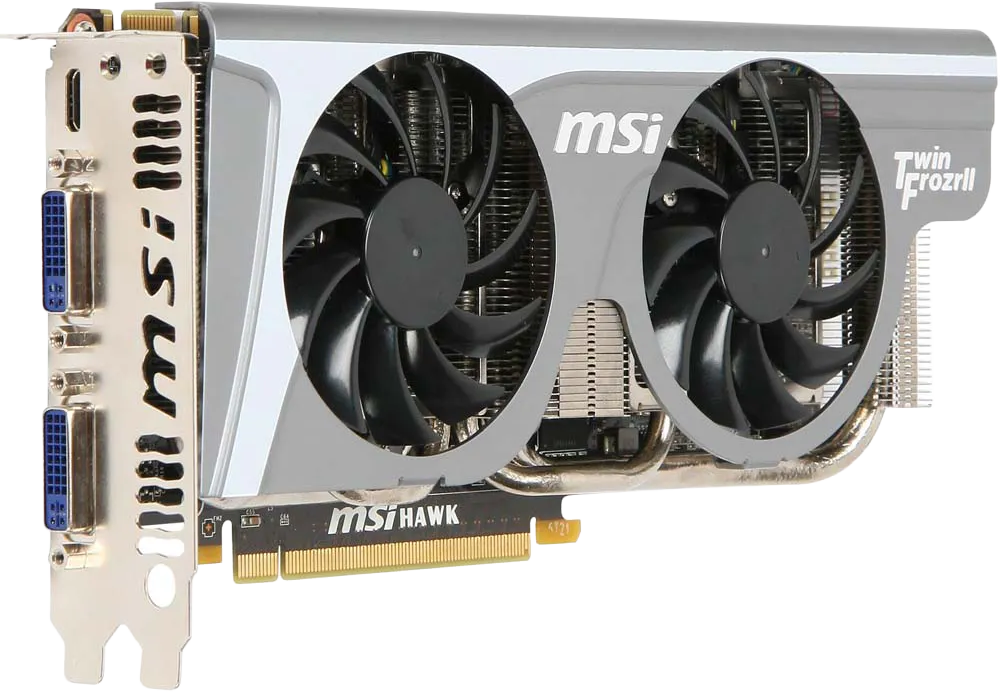

MSI GeForce GTX 460 Hawk - Front

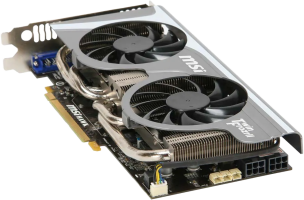

MSI GeForce GTX 460 Hawk - Front MSI GeForce GTX 460 Hawk - Side
MSI GeForce GTX 460 Hawk
N460GTX HAWK
Information
PlatformConsumer
ArchitectureFermi
GenerationGeForce 400
Previous GenGeForce 300
Next GenGeForce 500
InterfacePCIe 2.0 x16
Core
NameGF104
FoundryTSMC
Process Node40 nm
Transistors1950 million
Die Size332.0 mm²
Density5.9 /mm²
GPU Core Config
Cores336
TMUs56
ROPs32
SMs7
Memory
TechnologyGDDR5
Size1 GB
Bus256 bit
Bandwidth115.2 GB/s
Speed3.6 Gbps
Clocks
Base clock675 MHz
Shader Clock1350 MHz
Memory Clock900 MHz
Power
6-pin2
TDP160 w
Recommended PSU450 w
Display
HDMI1
DVI2
Mini HDMI1
Dimensions
Slots2
Length238 mm
Height111 mm
Width37 mm
Weight669 g
Bios files
70.04.13.00.01
N/A
Size: 59 KB
Build: 2010-06-29
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 460 Hawk
N460GTX HAWK
 -100.0%2238 mm111 mm37 mm
