MSI GeForce GTX 590
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 590 > MSI GeForce GTX 590

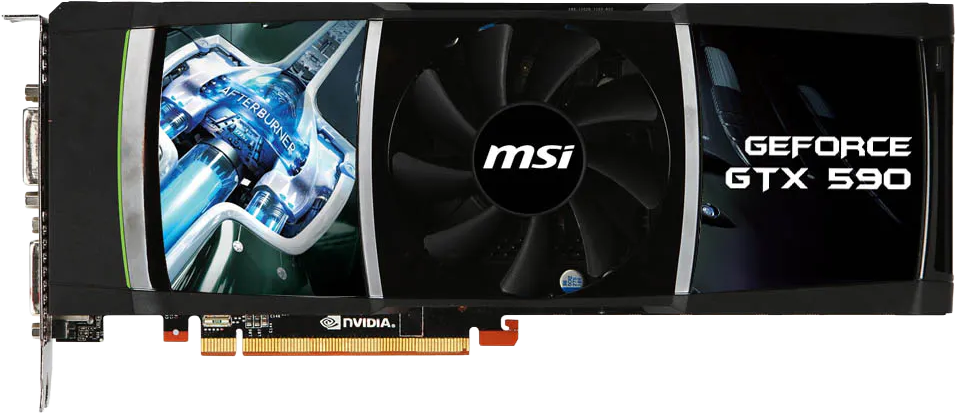

MSI GeForce GTX 590 - Front

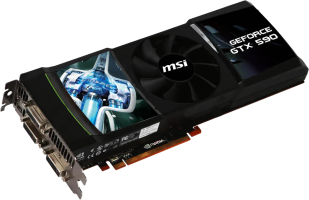

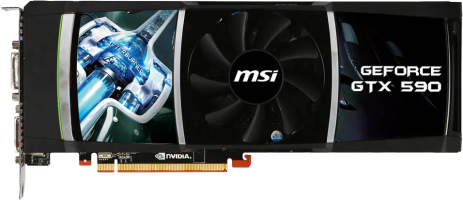

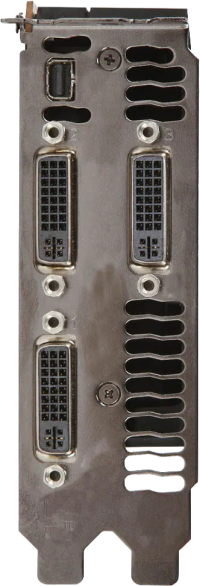

MSI GeForce GTX 590 - Front MSI GeForce GTX 590 - Side MSI GeForce GTX 590 - Side MSI GeForce GTX 590 - Outputs
MSI GeForce GTX 590
N590GTX-P3D3GD5
Information
PlatformConsumer
ArchitectureFermi 2.0
GenerationGeForce 500
Previous GenGeForce 400
Next GenGeForce 600
InterfacePCIe 2.0 x16
Core
NameGF110
FoundryTSMC
Process Node40 nm
Transistors3000 million
Die Size520.0 mm²
Density5.8 /mm²
GPU Core Config
Cores512
TMUs64
ROPs48
SMs16
Memory
TechnologyGDDR5
Size1.5 GB
Bus384 bit
Bandwidth164.0 GB/s
Speed3.4 Gbps
Clocks
Base clock607 MHz 608 MHz
Shader Clock1215 MHz
Memory Clock854 MHz
Power
8-pin2
TDP365 w
Recommended PSU700 w
Display
Mini DisplayPort1
DVI3
Dimensions
Slots2
Length280 mm 279 mm
Height111 mm
Width38 mm 40 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 590
N590GTX-P3D3GD5
 -100.0%2280 mm111 mm38 mm
