Asus P104-100
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA P104-100 > Asus P104-100

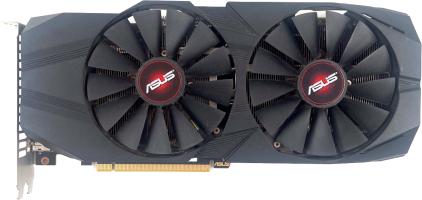

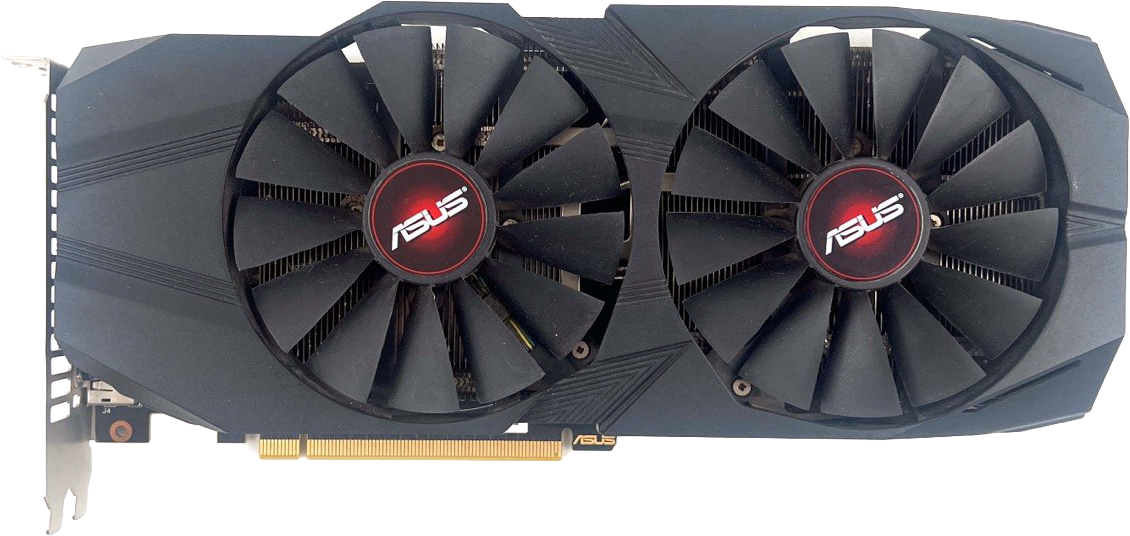

Asus P104-100 - Front

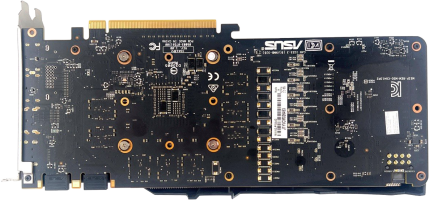

Asus P104-100 - Front Asus P104-100 - Rear
Asus P104-100
MINING-P104-4G
Information
PlatformMining
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP104
InterfacePCIe 1.0 x4
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314.0 mm²
Density22.9 /mm²
GPU Core Config
Cores1920
TMUs120
ROPs64
SMs15
Memory
TechnologyGDDR5X
TypeGDDR5X
Size4 GB
Bus256 bit
Bandwidth320.3 GB/s
Speed10.0 Gbps
Clocks
Base clock1607 MHz
Boost Clock1733 MHz
Memory Clock1251 MHz
Power
8-pin1
TDP217 w
Recommended PSU500 w
Dimensions
Slots2.3
Length269 mm
Height119 mm
Width46 mm
Bios files
8GB
Size: 2.5 KB
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus P104-100
MINING-P104-4G
1733 MHz2.3269 mm119 mm46 mm
