MSI GeForce RTX 4060 VENTUS 2X BLACK OC Database - Specs, information & files

MSI GeForce RTX 4060 VENTUS 2X BLACK OC

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 4060 > MSI GeForce RTX 4060 VENTUS 2X BLACK OC

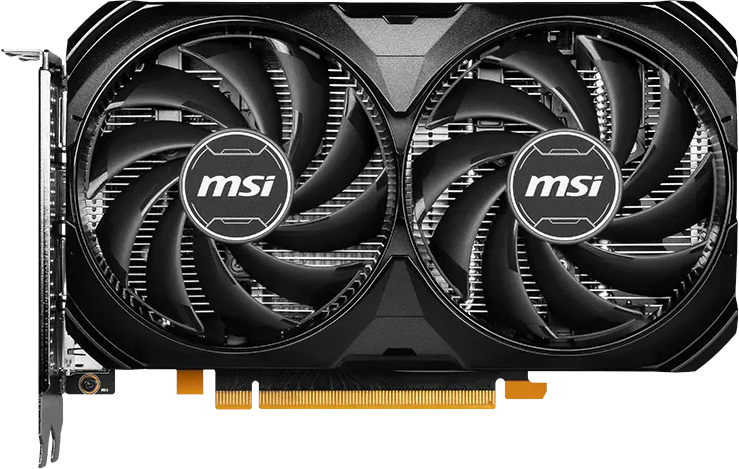

MSI GeForce RTX 4060 VENTUS 2X BLACK OC

Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD106
FoundryTSMC
Process Node5 nm
Transistors22900 million
Die Size188 mm²
Density121.8 /mm²
GPU Core Config
Cores3072
TMUs120
ROPs48
SMs24
Tensor Cores120
RT Cores30
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth288 GB/s
Speed18 Gbps

Information
Platform	Consumer
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16
Max temperature	90 C

Core
Name	AD106
Foundry	TSMC
Process Node	5 nm
Transistors	22900 million
Die Size	188 mm²
Density	121.8 /mm²

GPU Core Config
Cores	3072
TMUs	120
ROPs	48
SMs	24
Tensor Cores	120
RT Cores	30

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Bandwidth	288 GB/s
Speed	18 Gbps

Clocks
Base clock1830 MHz
Boost Clock2490 MHz 2460 MHz
Memory Clock2250 MHz
Power
8-pin1
TDP115 w
Recommended PSU550 w

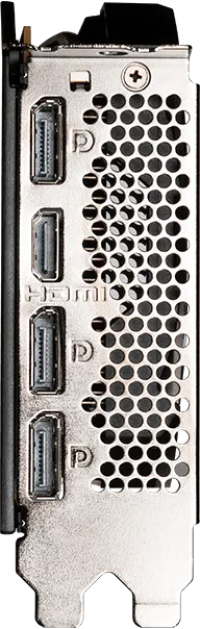

Display
DisplayPort3
HDMI1
Monitors4

Clocks
Base clock	1830 MHz
Boost Clock	2490 MHz 2460 MHz
Memory Clock	2250 MHz

Power
8-pin	1
TDP	115 w
Recommended PSU	550 w

Display
DisplayPort	3
HDMI	1
Monitors	4

Bios files

95.07.31.00.E3

N/A

Download

Size: 2000 KB

Build: 2023-04-18

Models

GPU▲	Boost Clock▲	Length▲	Height▲	Width▲
MSI GeForce RTX 4060 VENTUS 2X BLACK OC	2490 MHz +1.2%	mm	mm	mm
Asus ROG Strix GeForce RTX 4060	2460 MHz	mm	mm	mm
Asus ROG Strix GeForce RTX 4060 OC Edition	2460 MHz	mm	mm	mm
