NVIDIA RTX 4060 Ti 8GB

The RTX 4060 Ti 8GB is a consumer-grade GPU from nvidia's GeForce RTX 40 series, built on the Ada Lovelace architecture using the AD106 chip. Equipped with 8 GB of GDDR6 memory on a 128-bit bus, it delivers 288.0 GB/s of bandwidth at 18.0 Gbps.

Launched on 17 May, 2023, the RTX 4060 Ti 8GB carried a starting price of $399.

Rent RTX 4060 Ti 8GB
Cost $0.07/h*
Vast
* Median price
Host RTX 4060 Ti 8GB
Earn $0.10/h*
Vast
* Median price
Mine with RTX 4060 Ti 8GB
Earn $0.20/d*
Estimates
* Before power cost
GPUs.net

Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD106
FoundryTSMC
Process Node5 nm
Transistors22900 million
Die Size188.0 mm²
Density121.8 /mm²
GPU Core Config
Cores4352
TMUs136
ROPs48
SMs34
Tensor Cores136
RT Cores136
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth288.0 GB/s
Speed18.0 Gbps

Information
Platform	Consumer
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16
Max temperature	90 C

Core
Name	AD106
Foundry	TSMC
Process Node	5 nm
Transistors	22900 million
Die Size	188.0 mm²
Density	121.8 /mm²

GPU Core Config
Cores	4352
TMUs	136
ROPs	48
SMs	34
Tensor Cores	136
RT Cores	136

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Bandwidth	288.0 GB/s
Speed	18.0 Gbps

Clocks
Base clock2310 MHz
Boost Clock2535 MHz
Memory Clock2250 MHz
Power
8-pin1
TDP160 w
Recommended PSU550 w
Display
DisplayPort3 1.4a
HDMI1 2.1a

Clocks
Base clock	2310 MHz
Boost Clock	2535 MHz
Memory Clock	2250 MHz

Power
8-pin	1
TDP	160 w
Recommended PSU	550 w

Display
DisplayPort	3 1.4a
HDMI	1 2.1a

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus Dual GeForce RTX 4060 Ti OC Edition DUAL-RTX4060TI-O8G	2595 MHz +2.4%	2.5	227.2 mm	123.2 mm	49.6 mm
MSI GeForce RTX 4060 Ti VENTUS 2X BLACK	2565 MHz +1.2%	2.1	199 mm	120 mm	42 mm
Asus ROG Strix GeForce RTX 4060 Ti ROG-STRIX-RTX4060TI-8G-GAMING	2565 MHz +1.2%	3.1	311.4 mm	133.5 mm	61.9 mm
Asus ROG Strix GeForce RTX 4060 Ti OC Edition ROG-STRIX-RTX4060TI-O8G-GAMING	2715 MHz +7.1%	3.1	311.4 mm	133.5 mm	61.9 mm
Asus Dual GeForce RTX 4060 Ti White Edition DUAL-RTX4060TI-8G-WHITE	2565 MHz +1.2%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus Dual GeForce RTX 4060 Ti White OC Edition DUAL-RTX4060TI-O8G-WHITE	2595 MHz +2.4%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus TUF Gaming GeForce RTX 4060 Ti TUF-RTX4060TI-8G-GAMING	2565 MHz +1.2%	3.2	300 mm	139 mm	62.4 mm
Asus TUF Gaming GeForce RTX 4060 Ti OC Edition TUF-RTX4060TI-O8G-GAMING	2655 MHz +4.7%	3.2	300 mm	139 mm	62.4 mm
Asus Dual GeForce RTX 4060 Ti DUAL-RTX4060TI-8G	2565 MHz +1.2%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus Dual GeForce RTX 4060 Ti V2 DUAL-RTX4060TI-8G-V2	2565 MHz +1.2%	2	202 mm	120 mm	40.1 mm
Asus Dual GeForce RTX 4060 Ti V2 OC Edition DUAL-RTX4060TI-O8G-V2	2595 MHz +2.4%	2	202 mm	120 mm	40.1 mm
Asus Dual GeForce RTX 4060 Ti SSD DUAL-RTX4060TI-8G-SSD	2565 MHz +1.2%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus Dual GeForce RTX 4060 Ti SSD OC Edition DUAL-RTX4060TI-O8G-SSD	2595 MHz +2.4%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus Dual GeForce RTX 4060 Ti EVO DUAL-RTX4060TI-8G-EVO	2565 MHz +1.2%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus Dual GeForce RTX 4060 Ti EVO OC Edition DUAL-RTX4060TI-O8G-EVO	2595 MHz +2.4%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus PRIME GeForce RTX 4060 Ti PRIME-RTX4060TI-8G	2565 MHz +1.2%	2.5	269 mm	120 mm	50 mm
Asus PRIME GeForce RTX 4060 Ti OC Edition PRIME-RTX4060TI-O8G	2610 MHz +3.0%	2.5	269 mm	120 mm	50 mm
Asus Dual GeForce RTX 4060 Ti EVO White DUAL-RTX4060TI-8G-EVO-WHITE	2565 MHz +1.2%	2.5	227.2 mm	123.2 mm	49.6 mm
Asus Dual GeForce RTX 4060 Ti EVO White OC Edition DUAL-RTX4060TI-O8G-EVO-WHITE	2595 MHz +2.4%	2.5	227.2 mm	123.2 mm	49.6 mm
MSI GeForce RTX 4060 Ti VENTUS 3X OC	2580 MHz +1.8%	2.2	308 mm	120 mm	43 mm

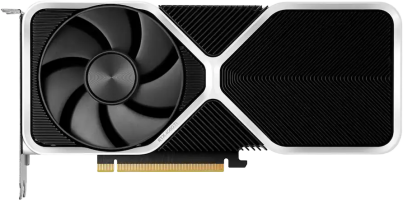

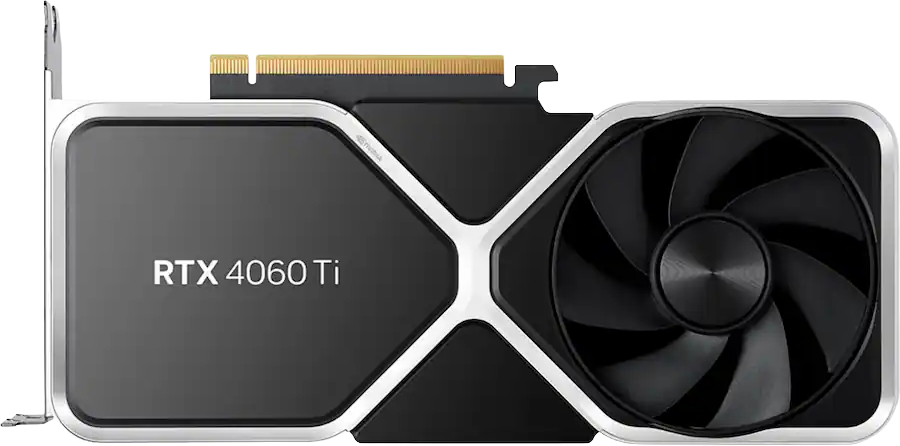

NVIDIA RTX 4060 Ti Founders Edition	2535 MHz	2
