NVIDIA RTX 4060 Ti Founders Edition
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 4060 Ti 8GB > NVIDIA RTX 4060 Ti Founders Edition

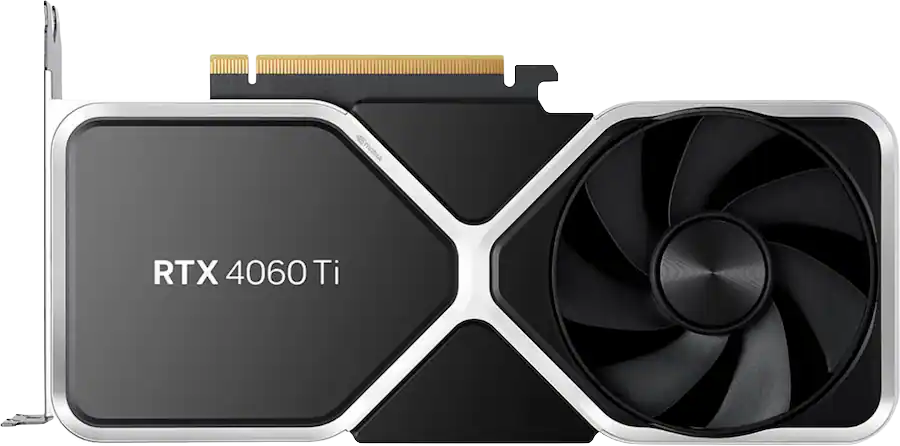

NVIDIA RTX 4060 Ti Founders Edition - Front

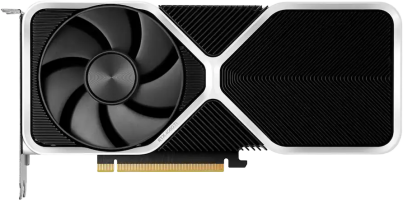

NVIDIA RTX 4060 Ti Founders Edition - Front NVIDIA RTX 4060 Ti Founders Edition - Rear NVIDIA RTX 4060 Ti Founders Edition - Side
NVIDIA RTX 4060 Ti Founders Edition
Available at BestBuy from $399.00. Buy now!
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Max temperature90 C
Core
NameAD106
FoundryTSMC
Process Node5 nm
Transistors22900 million
Die Size188.0 mm²
Density121.8 /mm²
GPU Core Config
Cores4352
TMUs136
ROPs48
SMs34
Tensor Cores136
RT Cores136
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth288.0 GB/s
Speed18.0 Gbps
Clocks
Base clock2310 MHz
Boost Clock2535 MHz
Memory Clock2250 MHz
Power
16-pin1
TDP160 w
Recommended PSU450 w 550 w
Display
DisplayPort3 1.4a
HDMI1 2.1
Dimensions
Slots2
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus Dual GeForce RTX 4060 Ti OC Edition
DUAL-RTX4060TI-O8G
2595 MHz +2.4%2.5227.2 mm123.2 mm49.6 mm
MSI GeForce RTX 4060 Ti VENTUS 2X BLACK
2565 MHz +1.2%2.1199 mm120 mm42 mm
Asus ROG Strix GeForce RTX 4060 Ti
ROG-STRIX-RTX4060TI-8G-GAMING
2565 MHz +1.2%3.1311.4 mm133.5 mm61.9 mm
Asus ROG Strix GeForce RTX 4060 Ti OC Edition
ROG-STRIX-RTX4060TI-O8G-GAMING
2715 MHz +7.1%3.1311.4 mm133.5 mm61.9 mm
Asus Dual GeForce RTX 4060 Ti White Edition
DUAL-RTX4060TI-8G-WHITE
2565 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4060 Ti White OC Edition
DUAL-RTX4060TI-O8G-WHITE
2595 MHz +2.4%2.5227.2 mm123.2 mm49.6 mm
Asus TUF Gaming GeForce RTX 4060 Ti
TUF-RTX4060TI-8G-GAMING
2565 MHz +1.2%3.2300 mm139 mm62.4 mm
Asus TUF Gaming GeForce RTX 4060 Ti OC Edition
TUF-RTX4060TI-O8G-GAMING
2655 MHz +4.7%3.2300 mm139 mm62.4 mm
Asus Dual GeForce RTX 4060 Ti
DUAL-RTX4060TI-8G
2565 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4060 Ti V2
DUAL-RTX4060TI-8G-V2
2565 MHz +1.2%2202 mm120 mm40.1 mm
Asus Dual GeForce RTX 4060 Ti V2 OC Edition
DUAL-RTX4060TI-O8G-V2
2595 MHz +2.4%2202 mm120 mm40.1 mm
Asus Dual GeForce RTX 4060 Ti SSD
DUAL-RTX4060TI-8G-SSD
2565 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4060 Ti SSD OC Edition
DUAL-RTX4060TI-O8G-SSD
2595 MHz +2.4%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4060 Ti EVO
DUAL-RTX4060TI-8G-EVO
2565 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4060 Ti EVO OC Edition
DUAL-RTX4060TI-O8G-EVO
2595 MHz +2.4%2.5227.2 mm123.2 mm49.6 mm
Asus PRIME GeForce RTX 4060 Ti
PRIME-RTX4060TI-8G
2565 MHz +1.2%2.5269 mm120 mm50 mm
Asus PRIME GeForce RTX 4060 Ti OC Edition
PRIME-RTX4060TI-O8G
2610 MHz +3.0%2.5269 mm120 mm50 mm
Asus Dual GeForce RTX 4060 Ti EVO White
DUAL-RTX4060TI-8G-EVO-WHITE
2565 MHz +1.2%2.5227.2 mm123.2 mm49.6 mm
Asus Dual GeForce RTX 4060 Ti EVO White OC Edition
DUAL-RTX4060TI-O8G-EVO-WHITE
2595 MHz +2.4%2.5227.2 mm123.2 mm49.6 mm
MSI GeForce RTX 4060 Ti VENTUS 3X OC
2580 MHz +1.8%2.2308 mm120 mm43 mm
NVIDIA RTX 4060 Ti Founders Edition
2535 MHz2
