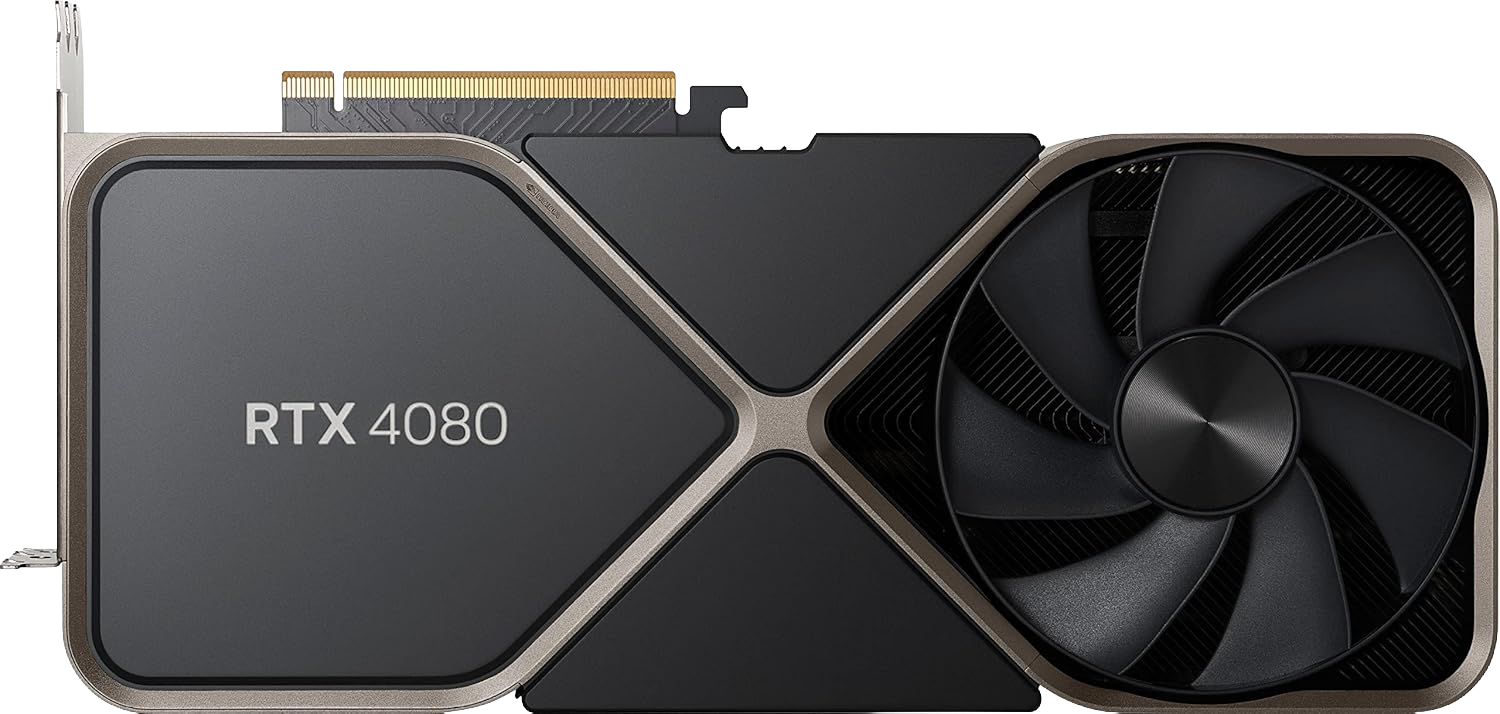

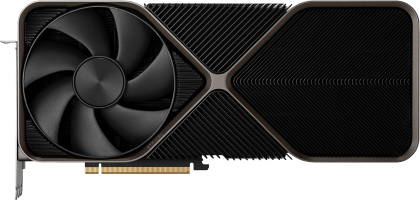

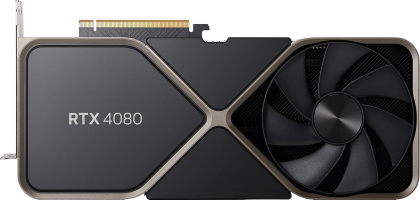

NVIDIA RTX 4080

The RTX 4080 is a consumer-grade GPU from nvidia's GeForce RTX 40 series, built on the  architecture using the AD103 chip. Equipped with 16 GB of GDDR6X memory on a 256-bit bus, it delivers 716.8 GB/s of bandwidth at 22.4 Gbps.

Launched on 15 Nov, 2022, the RTX 4080 carried a starting price of $1199.

Rent RTX 4080
Cost $0.16/h*
Vast
* Median price
Host RTX 4080
Earn $0.12/h*
Vast
* Median price
Mine with RTX 4080
Earn $0.51/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
Max temperature90 C
Core
NameAD103
FoundryTSMC
Process Node5 nm
Transistors45900 million
Die Size379 mm²
Density121.1 /mm²
GPU Core Config
Cores9728
TMUs304
ROPs112
Tensor Cores304
RT Cores76
Memory
TechnologyGDDR6X
Size16 GB
Bus256 bit
Bandwidth716.8 GB/s
Speed22.4 Gbps

Information
Platform	Consumer
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Max temperature	90 C

Core
Name	AD103
Foundry	TSMC
Process Node	5 nm
Transistors	45900 million
Die Size	379 mm²
Density	121.1 /mm²

GPU Core Config
Cores	9728
TMUs	304
ROPs	112
Tensor Cores	304
RT Cores	76

Memory
Technology	GDDR6X
Size	16 GB
Bus	256 bit
Bandwidth	716.8 GB/s
Speed	22.4 Gbps

Clocks
Base clock2205 MHz
Boost Clock2505 MHz
Memory Clock1400 MHz
Power
TDP320 w
Recommended PSU750 w
Display
DisplayPort3
HDMI1
Monitors4

Clocks
Base clock	2205 MHz
Boost Clock	2505 MHz
Memory Clock	1400 MHz

Power
TDP	320 w
Recommended PSU	750 w

Display
DisplayPort	3
HDMI	1
Monitors	4
