PNY GeForce RTX 4080 16GB VERTO Triple Fan
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA RTX 4080 > PNY GeForce RTX 4080 16GB VERTO Triple Fan

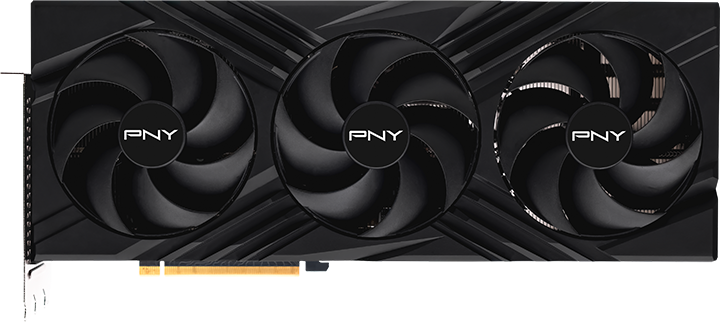

PNY GeForce RTX 4080 16GB VERTO Triple Fan - Front
PNY GeForce RTX 4080 16GB VERTO Triple Fan - Front PNY GeForce RTX 4080 16GB VERTO Triple Fan - Rear PNY GeForce RTX 4080 16GB VERTO Triple Fan - Side PNY GeForce RTX 4080 16GB VERTO Triple Fan - Outputs
PNY GeForce RTX 4080 16GB VERTO Triple Fan
VCG408016TFXPB1
Information
PlatformConsumer
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
Max temperature90 C
Core
NameAD103
FoundryTSMC
Process Node5 nm
Transistors45900 million
Die Size379.0 mm²
Density121.1 /mm²
GPU Core Config
Cores9728
TMUs304
ROPs112
Tensor Cores304
RT Cores76
Memory
TechnologyGDDR6X
Size16 GB
Bus256 bit
Bandwidth358.4 GB/s
Speed11.2 Gbps
Clocks
Base clock2205 MHz
Boost Clock2505 MHz
Memory Clock1400 MHz
Power
16-pin1
TDP320 w
Recommended PSU750 w
Display
DisplayPort3 1.4a
HDMI1 2.1
Monitors4
Dimensions
Slots3
Length340.4 mm
Height143 mm
Width59.5 mm
Bios files
95.03.2B.40.88
N/A
Size: 2000 KB
Build: 2022-12-06
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus ProArt GeForce RTX 4080
PROART-RTX4080-16G
2535 MHz +1.2%2.5300 mm120 mm50 mm
Asus ProArt GeForce RTX 4080 OC Edition
PROART-RTX4080-O16G
2625 MHz +4.8%2.5300 mm120 mm50 mm
Asus GeForce RTX 4080 Noctua OC Edition
RTX4080-O16G-NOCTUA
2625 MHz +4.8%4.4310 mm144.8 mm87.5 mm
Asus ROG Strix GeForce RTX 4080 White Edition
ROG-STRIX-RTX4080-16G-WHITE-MODEL
2535 MHz +1.2%3.5357.6 mm149.3 mm70.1 mm
Asus ROG Strix GeForce RTX 4080 White OC Edition
ROG-STRIX-RTX4080-O16G-WHITE-MODEL
2655 MHz +6.0%3.5357.6 mm149.3 mm70.1 mm
Asus ROG Strix GeForce RTX 4080
ROG-STRIX-RTX4080-16G-GAMING-MODEL
2535 MHz +1.2%3.5357.6 mm149.3 mm70.1 mm
Asus ROG Strix GeForce RTX 4080 OC Edition
ROG-STRIX-RTX4080-O16G-GAMING-MODEL
2655 MHz +6.0%3.5357.6 mm149.3 mm70.1 mm
Asus TUF Gaming GeForce RTX 4080
TUF-RTX4080-16G-GAMING
2535 MHz +1.2%3.7348.2 mm150 mm72.6 mm
Asus TUF Gaming GeForce RTX 4080 OC Edition
TUF-RTX4080-O16G-GAMING
2625 MHz +4.8%3.7348.2 mm150 mm72.6 mm
Gigabyte GeForce RTX 4080 GAMING OC
GV-N4080GAMING OC-16GD
2535 MHz +1.2%3.8342 mm150 mm75 mm
Gigabyte GeForce RTX 4080 16GB EAGLE
GV-N4080EAGLE-16GD
2505 MHz3.5342 mm150 mm70 mm
NVIDIA RTX 4080 Founders Edition
2505 MHz3.1310 mm140 mm61 mm
Zotac GeForce RTX 4080 AMP Extreme AIRO
ZT-D40810B-10P
2565 MHz +2.4%3.6355.5 mm149.6 mm72.2 mm
PNY GeForce RTX 4080 16GB VERTO Triple Fan
VCG408016TFXPB1
2505 MHz3340.4 mm143 mm59.5 mm
