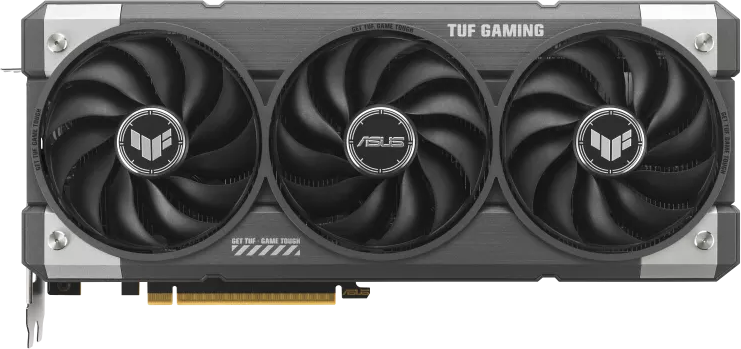

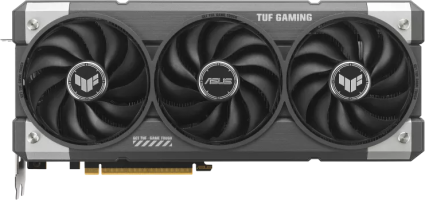

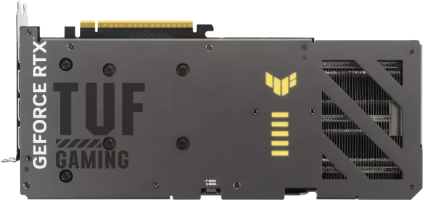

Asus TUF Gaming GeForce RTX 5060 OC Edition
TUF-RTX5060-O8G-GAMING
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5060, designed to withstand the harshest conditions and deliver unparalleled performance.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB206
InterfacePCIe 5.0 x8
Core
NameGB206
FoundryTSMC
Process Node5 nm
Transistors21900 million
Die Size181 mm²
Density121.0 /mm²
GPU Core Config
Cores3840
TMUs120
ROPs48
SMs30
RT Cores30
Memory
TechnologyGDDR7
Size8 GB
Bus128 bit
Bandwidth448 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB206
Interface	PCIe 5.0 x8

Core
Name	GB206
Foundry	TSMC
Process Node	5 nm
Transistors	21900 million
Die Size	181 mm²
Density	121.0 /mm²

GPU Core Config
Cores	3840
TMUs	120
ROPs	48
SMs	30
RT Cores	30

Memory
Technology	GDDR7
Size	8 GB
Bus	128 bit
Bandwidth	448 GB/s
Speed	28 Gbps

Clocks
Base clock2280 MHz
Boost Clock2640 MHz 2497 MHz
Memory Clock1750 MHz
Power
8-pin1
TDP145 w
Recommended PSU550 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3.1
Length302 mm
Height133.5 mm
Width62 mm

Clocks
Base clock	2280 MHz
Boost Clock	2640 MHz 2497 MHz
Memory Clock	1750 MHz

Power
8-pin	1
TDP	145 w
Recommended PSU	550 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	3.1
Length	302 mm
Height	133.5 mm
Width	62 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Zotac GeForce RTX 5060 AMP ZT-B50600F-10M	2550 MHz +2.1%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Twin Edge OC White Edition ZT-B50600Q-10M	2527 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Twin Edge OC ZT-B50600H-10M	2527 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Twin Edge ZT-B50600E-10M	2497 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Low Profile ZT-B50600L-10L	2497 MHz	2	182.5 mm	69 mm	38.2 mm
Zotac GeForce RTX 5060 SOLO ZT-B50600G-10L	2497 MHz	2	164.5 mm	111.2 mm	36.4 mm
Gigabyte AORUS GeForce RTX 5060 ELITE GV-N5060AORUS E-8GD	2722 MHz +9.0%	2	329 mm	128 mm	40 mm
Gigabyte GeForce RTX 5060 GAMING OC GV-N5060GAMING OC-8GD	2595 MHz +3.9%	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 GAMING GV-N5060GAMING-8GD	2497 MHz	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 EAGLE OC ICE GV-N5060EAGLEOC ICE-8GD	2550 MHz +2.1%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 EAGLE MAX OC GV-N5060EAGLEMAX OC-8GD	2550 MHz +2.1%	2	281 mm	115 mm	40 mm
Gigabyte GeForce RTX 5060 EAGLE OC GV-N5060EAGLE OC-8GD	2550 MHz +2.1%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 AERO OC GV-N5060AERO OC-8GD	2595 MHz +3.9%	2	281 mm	117 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE MAX OC GV-N5060WF2MAX OC-8GD	2512 MHz +0.6%	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE MAX GV-N5060WF2MAX-8GD	2497 MHz	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE OC GV-N5060WF2OC-8GD	2512 MHz +0.6%	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE GV-N5060WF2-8GD	2497 MHz	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 OC Low Profile GV-N5060OC-8GL	2512 MHz +0.6%	2	182 mm	69 mm	36 mm
Gigabyte GeForce RTX 5060 D7 Low Profile GV-N5060D7-8GL	2497 MHz	2	182 mm	69 mm	36 mm
Asus Dual GeForce RTX 5060 White Edition DUAL-RTX5060-8G-WHITE	2497 MHz	2.5	228 mm	123 mm	50 mm
Asus Dual GeForce RTX 5060 EVO OC Edition DUAL-RTX5060-O8G-EVO	2535 MHz +1.5%	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 EVO DUAL-RTX5060-8G-EVO	2497 MHz	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 White OC Edition DUAL-RTX5060-O8G-WHITE	2535 MHz +1.5%	2.5	228 mm	123 mm	50 mm
Asus GeForce RTX 5060 LP BRK RTX5060-8G-LP-BRK	2497 MHz	2	175.8 mm	69 mm	38 mm
Asus GeForce RTX 5060 LP BRK OC Edition RTX5060-O8G-LP-BRK	2550 MHz +2.1%	2	175.8 mm	69 mm	38 mm
Asus Dual GeForce RTX 5060 DUAL-RTX5060-8G	2497 MHz	2.5	228 mm	123 mm	50 mm
Asus PRIME GeForce RTX 5060 PRIME-RTX5060-8G	2497 MHz	2.5	268.3 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 OC Edition PRIME-RTX5060-O8G	2565 MHz +2.7%	2.5	268.3 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 OC Edition DUAL-RTX5060-O8G	2535 MHz +1.5%	2.5	228 mm	123 mm	50 mm
Asus TUF Gaming GeForce RTX 5060 TUF-RTX5060-8G-GAMING	2497 MHz	3.1	302 mm	133.5 mm	62 mm
Asus TUF Gaming GeForce RTX 5060 OC Edition TUF-RTX5060-O8G-GAMING	2640 MHz +5.7%	3.1	302 mm	133.5 mm	62 mm
MSI GeForce RTX 5060 CYCLONE G5060-8C	2497 MHz	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 CYCLONE OC G5060-8CC	2527 MHz +1.2%	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 INSPIRE ITX G5060-8II	2497 MHz	2.3	145 mm	120 mm	45 mm
MSI GeForce RTX 5060 INSPIRE ITX OC G5060-8IIC	2527 MHz +1.2%	2.3	145 mm	12 mm	45 mm
MSI GeForce RTX 5060 GAMING G5060-8G	2497 MHz	2.1	248 mm	135 mm	41 mm
MSI GeForce RTX 5060 GAMING OC G5060-8GC	2625 MHz +5.1%	2.1	248 mm	135 mm	4.1 mm
MSI GeForce RTX 5060 VENTUS 2X G5060-8V2	2497 MHz	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5060 VENTUS 2X OC G5060-8V2C	2527 MHz +1.2%	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5060 SHADOW 2X G5060-8S2	2497 MHz	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5060 SHADOW 2X OC G5060-8S2C	2527 MHz +1.2%	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5060 GAMING TRIO G5060-8GT	2497 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 GAMING TRIO OC G5060-8GTC	2625 MHz +5.1%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 GAMING TRIO WHITE G5060-8GTW	2497 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 GAMING TRIO OC WHITE G5060-8GTCW	2625 MHz +5.1%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 VENTUS 3X G5060-8V3	2497 MHz	2.1	303 mm	121 mm	41 mm
MSI GeForce RTX 5060 VENTUS 3X OC G5060-8V3C	2535 MHz +1.5%	2.1	303 mm	121 mm	41 mm
MSI GeForce RTX 5060 INSPIRE 2X G5060-8I2	2497 MHz	2.1	204 mm	117 mm	41 mm
MSI GeForce RTX 5060 INSPIRE 2X OC G5060-8I2C	2535 MHz +1.5%	2.1	204 mm	117 mm	41 mm
MSI GeForce RTX 5060 VENTUS 2X WHITE G5060-8V2W	2497 MHz	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5060 VENTUS 2X OC WHITE G5060-8V2CW	2527 MHz +1.2%	2.1	197 mm	120 mm	41 mm
Palit GeForce RTX 5060 White OC NE75060U19P1-GB2063M	2527 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Dual NE75060019P1-GB2063D	2497 MHz	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Dual OC NE75060S19P1-GB2063D	2535 MHz +1.5%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Infinity 2 OC NE75060V19P1-GB2063L	2512 MHz +0.6%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Infinity 3 NE75060019P1-GB2063S	2497 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5060 Infinity 3 OC NE75060T19P1-GB2063S	2580 MHz +3.3%	2.1	291.9 mm	116.6 mm	41.3 mm
