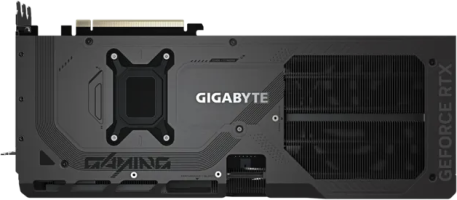

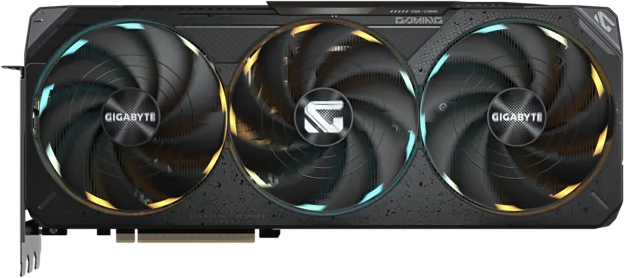

Gigabyte GeForce RTX 5080 GAMING OC
GV-N5080GAMING OC-16GD
Powered by the NVIDIA Blackwell architecture and DLSS 4
 Powered by GeForce RTX™ 5080
 Integrated with 16GB GDDR7 256bit memory interface

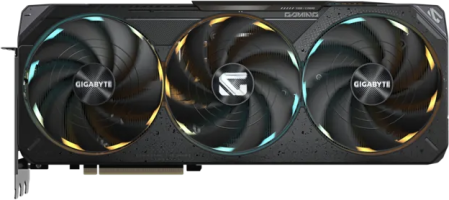

 WINDFORCE cooling system
 Hawk fan
 Server-grade thermal conductive gel
 RGB Halo
 Dual BIOS (Performance / Silent)
 Reinforced structure
 Versatile VGA holder
Available at Amazon from $1499.99. Buy now!

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores10752
TMUs336
ROPs112
SMs84
RT Cores84
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth960 GB/s
Speed30 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x16
Max temperature	88 C

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

GPU Core Config
Cores	10752
TMUs	336
ROPs	112
SMs	84
RT Cores	84

Memory
Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	960 GB/s
Speed	30 Gbps

Clocks
Base clock2300 MHz
Boost Clock2730 MHz 2617 MHz
Memory Clock1875 MHz
Power
16-pin1
TDP360 w
Recommended PSU850 w

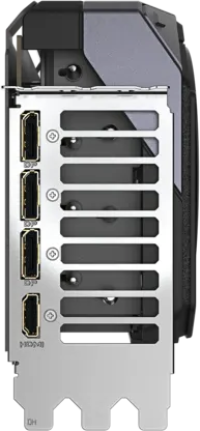

Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3.5 2
Length340 mm 304 mm
Height140 mm 137 mm
Width70 mm 40 mm

Clocks
Base clock	2300 MHz
Boost Clock	2730 MHz 2617 MHz
Memory Clock	1875 MHz

Power
16-pin	1
TDP	360 w
Recommended PSU	850 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	3.5 2
Length	340 mm 304 mm
Height	140 mm 137 mm
Width	70 mm 40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Astral GeForce RTX 5080 Dhahab CORE OC Edition ROG-ASTRAL-RTX5080-O16G-DHAHAB-CORE	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC HATSUNE MIKU EDITION	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC DOOM Edition ROG-ASTRAL-RTX5080-O16G-DOOM-EDITION	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE OC Edition ROG-ASTRAL-RTX5080-O16G-WHITE	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE Edition ROG-ASTRAL/ROG-ASTRAL-RTX5080-16G-WHITE	2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 ROG-ASTRAL-RTX5080-16G-GAMING	2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC Edition ROG-ASTRAL-RTX5080-O16G-GAMING	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ULTRA ZT-B50800BU-10P	2730 MHz +4.3%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ZT-B50800B-10P	2670 MHz +2.0%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 SOLID OC White Edition ZT-B50800Q-10P	2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID OC ZT-B50800J-10P	2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID ZT-B50800D-10P	2617 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID CORE OC ZT-B50800J2-10P	2640 MHz +0.9%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5080 SOLID CORE ZT-B50800D2-10P	2617 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE GV-N5080AORUSX W-16GD	2805 MHz +7.2%	2	220 mm	130 mm	40 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE WB GV-N5080AORUSX WB-16GD	2805 MHz +7.2%	2	208 mm	156 mm	29 mm
Gigabyte GeForce RTX 5080 MASTER ICE GV-N5080AORUSM ICE-16GD	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5080 MASTER GV-N5080AORUS M-16GD	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5080 GAMING OC GV-N5080GAMING OC-16GD	2730 MHz +4.3%	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 GAMING GV-N5080GAMING-16GD	2617 MHz	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 AERO OC SFF GV-N5080AERO OC-16GD	2730 MHz +4.3%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE OC SFF GV-N5080WF3OC-16GD	2670 MHz +2.0%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE SFF GV-N5080WF3-16GD	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5080 PROART-RTX5080-16G	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus GeForce RTX 5080 Noctua OC Edition RTX5080-O16G-NOCTUA	2700 MHz +3.2%	4	385 mm	151 mm	80 mm
Asus ProArt GeForce RTX 5080 OC Edition PROART-RTX5080-O16G	2700 MHz +3.2%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5080 TUF-RTX5080-16G-GAMING	2617 MHz	3.6	348 mm	146 mm	72 mm
Asus TUF Gaming GeForce RTX 5080 OC Edition TUF-RTX5080-O16G-GAMING	2700 MHz +3.2%	3.6	348 mm	146 mm	72 mm
Asus PRIME GeForce RTX 5080 PRIME-RTX5080-16G	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5080 OC Edition PRIME-RTX5080-O16G	2655 MHz +1.5%	2.5	304 mm	126 mm	50 mm
Zotac GeForce RTX 5080 APOCALYPSE OC ZT-B50800C-10P	2730 MHz +4.3%	3.7	361 mm	138 mm	73 mm
MSI GeForce RTX 5080 EXPERT G5080-16E	2617 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 EXPERT OC G5080-16EC	2715 MHz +3.7%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 INSPIRE 3X G5080-16I3	2617 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 INSPIRE 3X OC G5080-16I3C	2640 MHz +0.9%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 SHADOW 3X G5080-16S3	2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 SHADOW 3X OC G5080-16S3C	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO G5080-16GT	2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC G5080-16GTC	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VENTUS 3X G5080-16V3	2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC PLUS G5080-16V3CP	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO WHITE G5080-16GTW	2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC WHITE G5080-16GTCW	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VANGUARD OC G5080-16VGC	2700 MHz +3.2%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC G5080-16VGS	2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC LAUNCH EDITION G5080-16VGSL	2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 SUPRIM OC G5080-16SPC	2700 MHz +3.2%	3.8	359 mm	150 mm	76 mm
MSI GeForce RTX 5080 SUPRIM SOC G5080-16SPS	2745 MHz +4.9%	3.8	359 mm	15 mm	76 mm
MSI GeForce RTX 5080 SUPRIM LIQUID OC G5080-16SLC	2700 MHz +3.2%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 SUPRIM LIQUID SOC G5080-16SLS	2745 MHz +4.9%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 VENTUS 3X WHITE G5080-16V3W	2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC WHITE G5080-16V3CW	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
Palit GeForce RTX 5080 GamingPro V1 NE75080019T2-GB2031Y	2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC V1 NE75080S19T2-GB2031Y	2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro NE75080019T2-GB2031A	2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC NE75080S19T2-GB2031A	2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GameRock NE75080019T2-GB2030G	2617 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5080 GameRock OC NE75080T19T2-GB2030G	2730 MHz +4.3%	3.6	331.9 mm	150 mm	70.4 mm
