NVIDIA GTX TITAN Z
Specs, info and data
The GPU Database
Featuring 230+ GPU models — and growing.
Database > GPUs > NVIDIA GTX TITAN Z > NVIDIA GTX TITAN Z

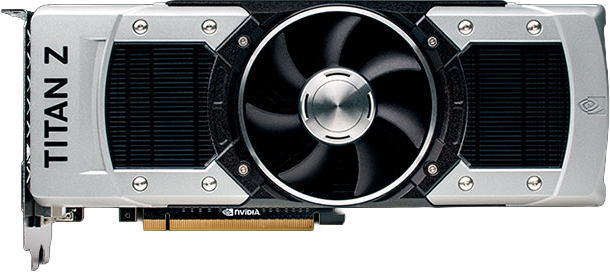

NVIDIA GTX TITAN Z - Front

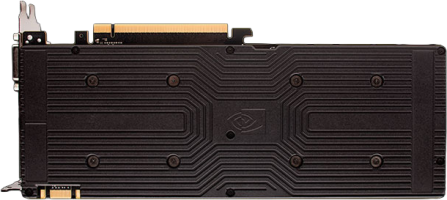

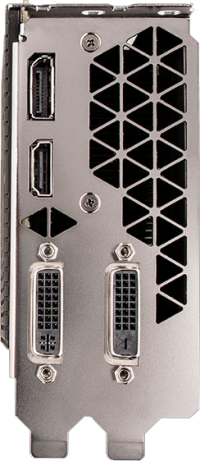

NVIDIA GTX TITAN Z - Front NVIDIA GTX TITAN Z - Rear NVIDIA GTX TITAN Z - Side NVIDIA GTX TITAN Z - Outputs
NVIDIA GTX TITAN Z
900-12080-000-000
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK110B
FoundryTSMC
Process Node28 nm
Transistors7080 million
Die Size561.0 mm²
Density12.6 /mm²
GPU Core Config
Cores2880
TMUs240
ROPs48
Memory
TechnologyGDDR5
Size6 GB
Bus384 bit
Bandwidth336.6 GB/s
Speed7.0 Gbps
Clocks
Base clock706 MHz
Boost Clock876 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP375 w
Recommended PSU750 w
Display
DisplayPort1
HDMI1
DVI2
Dimensions
Slots3.1
Length268 mm
Height111 mm
Width61 mm
Bios files
80.80.60.00.01
N/A
Size: 200.5 KB
Build: 2014-06-18
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
NVIDIA GTX TITAN Z
900-12080-000-000
876 MHz3.1268 mm111 mm61 mm
