Sapphire TOXIC R9 270X OC
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > AMD Radeon R9 270X > Sapphire TOXIC R9 270X OC

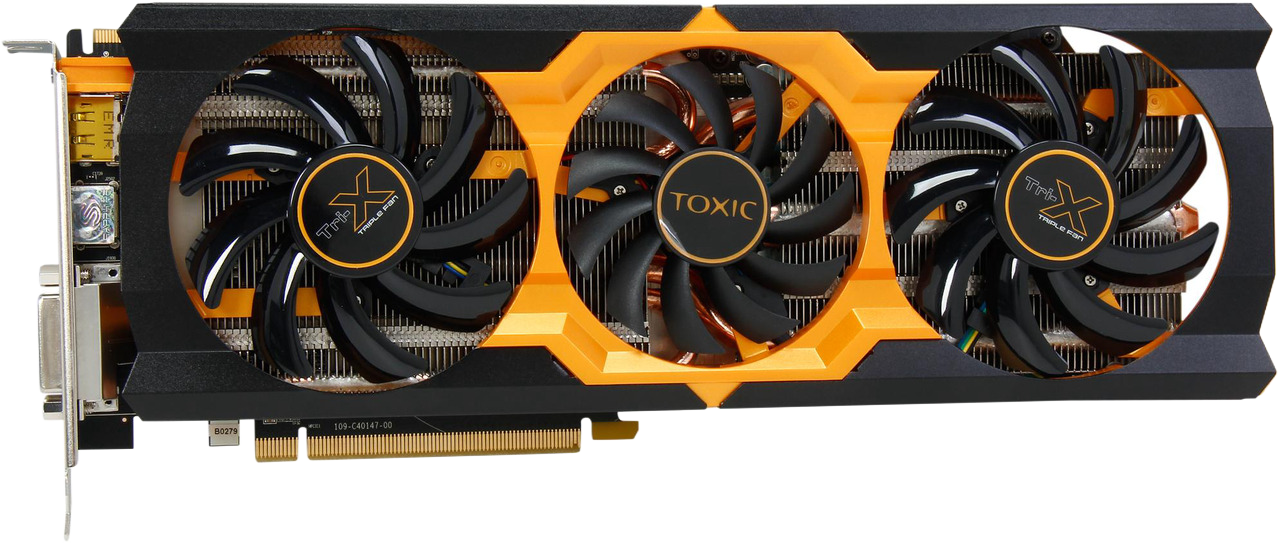

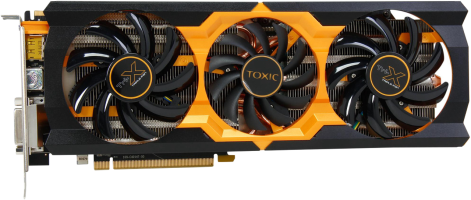

Sapphire TOXIC R9 270X OC - Front

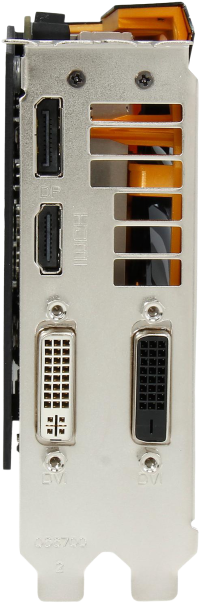

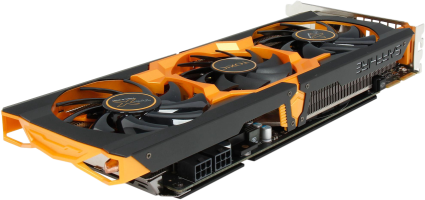

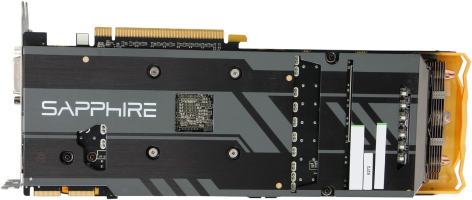

Sapphire TOXIC R9 270X OC - Front Sapphire TOXIC R9 270X OC - Rear Sapphire TOXIC R9 270X OC - Side Sapphire TOXIC R9 270X OC - Outputs
Sapphire TOXIC R9 270X OC
11217-02
Information
PlatformConsumer
ArchitectureGCN 1.0
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
InterfacePCIe 3.0 x16
Core
NameCuracao
FoundryTSMC
Process Node28 nm
Transistors3 million
Die Size212.0 mm²
Density0.0 /mm²
GPU Core Config
Cores1280
Compute Units20
TMUs80
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth179.2 GB/s
Speed5.6 Gbps
Clocks
Base clock1100 MHz 1000 MHz
Boost Clock1150 MHz 1050 MHz
Memory Clock1400 MHz
Power
6-pin2
TDP180 w
Recommended PSU500 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI2
Dimensions
Slots2
Length308 mm 241 mm
Height109 mm
Width36 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Sapphire TOXIC R9 270X OC
11217-02
1150 MHz +9.5%2308 mm
