Sapphire Radeon R9 290
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.

Database > GPUs > AMD Radeon R9 290 > Sapphire Radeon R9 290

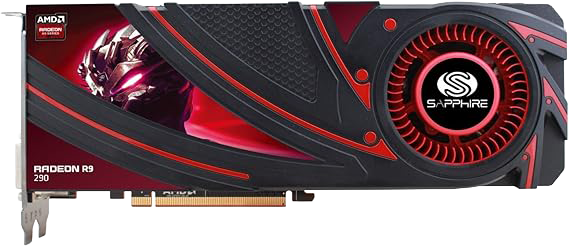

Sapphire Radeon R9 290 - Front
Sapphire Radeon R9 290 - Front
Sapphire Radeon R9 290
21227-00

Information
PlatformConsumer
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
GPU Core Config
Cores2560
TMUs160
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus512 bit
Bandwidth320.0 GB/s
Speed5.0 Gbps
Clocks
Base clock947 MHz
Memory Clock1250 MHz
Power
6-pin1
8-pin1
TDP275 w
Recommended PSU600 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI2
Dimensions
Slots2
Length276 mm
Height108 mm
Width37 mm

Models
GPUBoost ClockSlotsLengthHeightWidth
2276 mm108 mm37 mm
