MSI Radeon R9 290X
Specs, info and data
The GPU Database
Featuring 310+ GPU models — and growing.
Database > GPUs > AMD Radeon R9 290X > MSI Radeon R9 290X

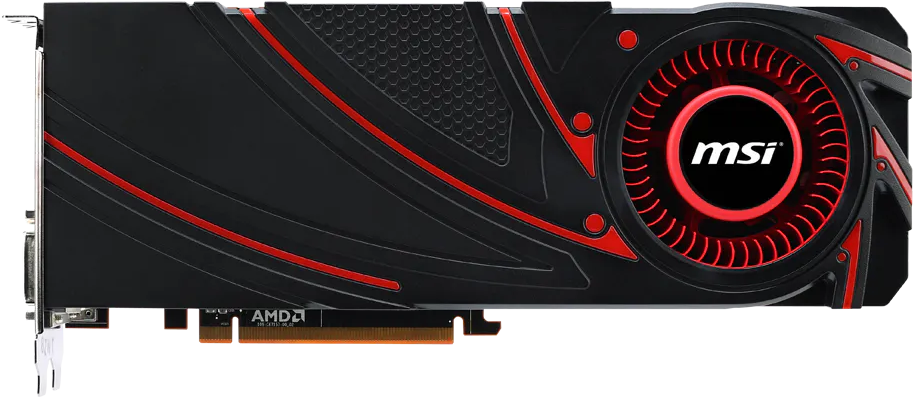

MSI Radeon R9 290X - Front

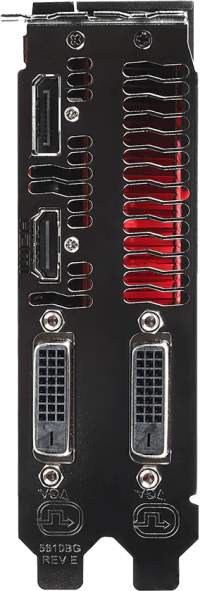

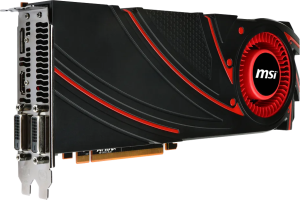

MSI Radeon R9 290X - Front MSI Radeon R9 290X - Side MSI Radeon R9 290X - Side MSI Radeon R9 290X - Outputs
MSI Radeon R9 290X
R9-290X-4GD5
Information
PlatformConsumer
ArchitectureGCN 2.0
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
InterfacePCIe 3.0 x16
Core
NameHawaii
FoundryTSMC
Process Node28 nm
Transistors6200 million
Die Size438.0 mm²
Density14.2 /mm²
GPU Core Config
Cores2816
Compute Units44
TMUs176
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus512 bit
Bandwidth320.0 GB/s
Speed5.0 Gbps
Clocks
Base clock1000 MHz
Memory Clock1250 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU750 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL2
Dimensions
Slots1.8 2
Length276 mm
Height99 mm
Width35 mm
Weight1018 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI Radeon R9 290X LIGHTNING
2.8302 mm131 mm55 mm
Asus ROG Matrix R9 290X Platinum
MATRIX-R9290X-P-4GD5
2295 mm152 mm38 mm
Asus ROG Ares III
ARESIII-8GD5
1
Asus ROG Matrix R9 290X
MATRIX-R9290X-4GD5
2295 mm152 mm38 mm
MSI Radeon R9 290X
R9-290X-4GD5
1.8276 mm99 mm35 mm
