AMD Radeon R9 295X2 Database - Specs, information & files

AMD Radeon R9 295X2

Specs, info and data

The GPU Database

Featuring 310+ GPU models — and growing.

Database > GPUs > AMD Radeon R9 295X2

AMD Radeon R9 295X2

The Radeon R9 295X2 is a consumer-grade GPU from amd's Volcanic Islands series, built on the GCN 2.0 architecture using the Vesuvius chip. Equipped with 4 GB of GDDR5 memory on a 512-bit bus, it delivers 320.0 GB/s of bandwidth at 5.0 Gbps.

Launched on 28 Apr, 2014, the Radeon R9 295X2 carried a starting price of $1499.

GPUs.net

Information
PlatformConsumer
ArchitectureGCN 2.0
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
InterfacePCIe 3.0 x16
Core
NameVesuvius
FoundryTSMC
Process Node28 nm
Transistors6 million
Die Size438.0 mm²
Density0.0 /mm²
GPU Core Config
Cores2816
Compute Units44
TMUs176
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus512 bit
Bandwidth320.0 GB/s
Speed5.0 Gbps

Information
Platform	Consumer
Architecture	GCN 2.0
Generation	Volcanic Islands
Previous Gen	Sea Islands
Next Gen	Pirate Islands
Interface	PCIe 3.0 x16

Core
Name	Vesuvius
Foundry	TSMC
Process Node	28 nm
Transistors	6 million
Die Size	438.0 mm²
Density	0.0 /mm²

GPU Core Config
Cores	2816
Compute Units	44
TMUs	176
ROPs	64

Memory
Technology	GDDR5
Size	4 GB
Bus	512 bit
Bandwidth	320.0 GB/s
Speed	5.0 Gbps

Clocks
Base clock1018 MHz
Memory Clock1250 MHz
Power
8-pin2
TDP500 w
Recommended PSU900 w

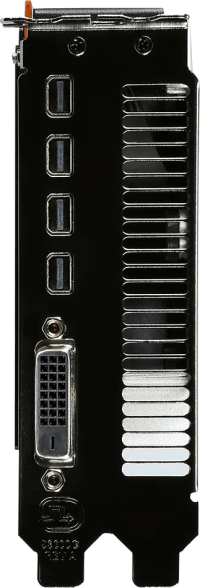

Display
Mini DisplayPort4
DVI1
Dimensions
Slots2.1
Length307 mm
Height114 mm
Width42 mm

Clocks
Base clock	1018 MHz
Memory Clock	1250 MHz

Power
8-pin	2
TDP	500 w
Recommended PSU	900 w

Display
Mini DisplayPort	4
DVI	1

Dimensions
Slots	2.1
Length	307 mm
Height	114 mm
Width	42 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲

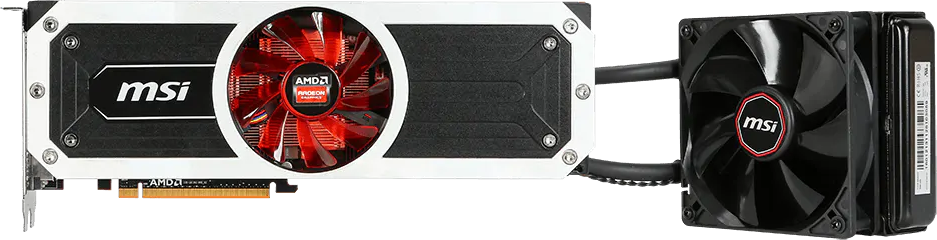

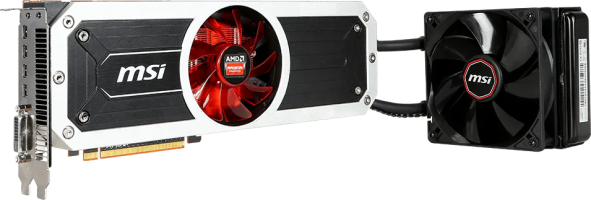

MSI Radeon R9 295X2 R9-295X2-8GD5		3.3	307 mm	111 mm	65 mm
