| Information | |
|---|---|
| Platform | Consumer |
| Architecture | GCN 2.0 |
| Generation | Volcanic Islands |
| Previous Gen | Sea Islands |
| Next Gen | Pirate Islands |
| Interface | PCIe 3.0 x16 |
| Core | |
|---|---|
| Name | Vesuvius |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 6 million |
| Die Size | 438.0 mm² |
| Density | 0.0 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 2816 |
| Compute Units | 44 |
| TMUs | 176 |
| ROPs | 64 |
| Memory | |
|---|---|
| Technology | GDDR5 |
| Size | 4 GB |
| Bus | 512 bit |
| Bandwidth | 320.0 GB/s |
| Speed | 5.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1018 MHz |
| Memory Clock | 1250 MHz |
| Power | |
|---|---|
| 8-pin | 2 |
| TDP | 500 w |
| Recommended PSU | 900 w |

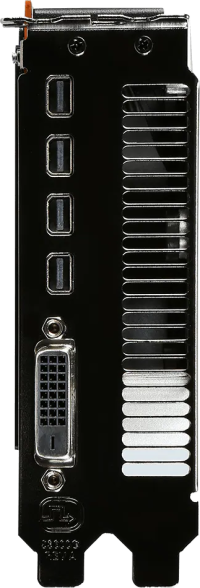

| Display | |
|---|---|
| Mini DisplayPort | 4 |
| DVI | 1 |
| DVI-D DL | 1 |
| Dimensions | |
|---|---|
| Slots | 3.3 2.1 |
| Length | 307 mm |
| Height | 111 mm 114 mm |
| Width | 65 mm 42 mm |
| Weight | 1850 g |
| GPU▲ | Boost Clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|
| 3.3 | 307 mm | 111 mm | 65 mm |
