Sapphire PULSE AMD Radeon RX 6500 XT
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.
Database > GPUs > AMD RX 6500 XT > Sapphire PULSE AMD Radeon RX 6500 XT

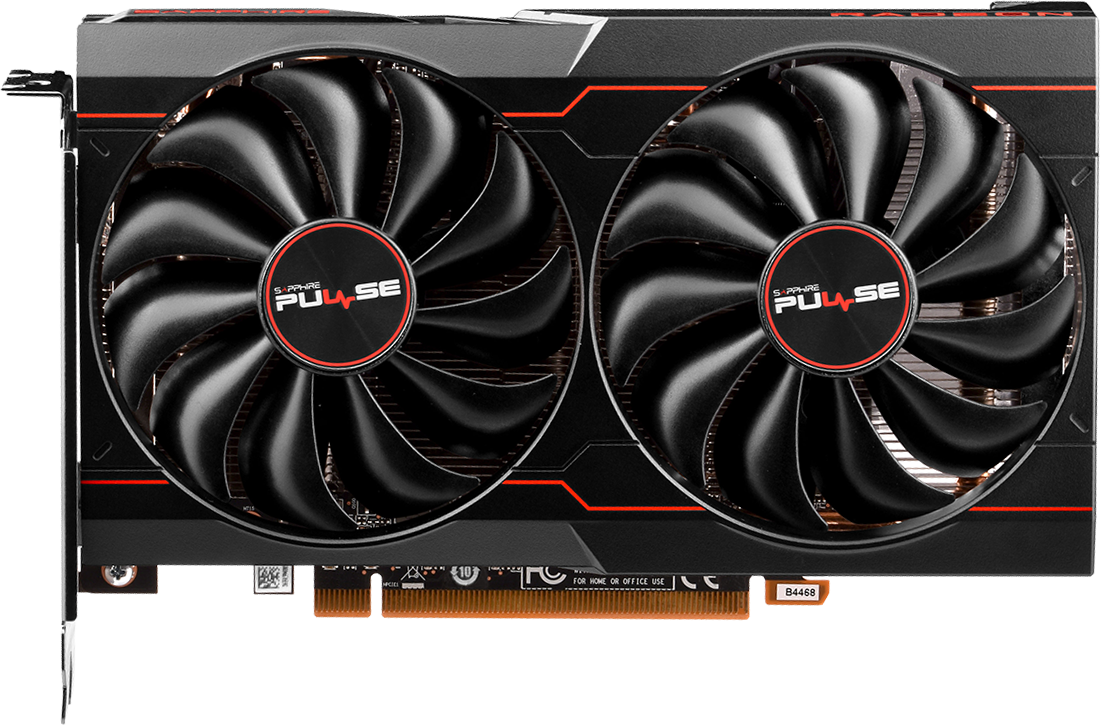

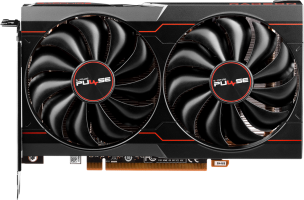

Sapphire PULSE AMD Radeon RX 6500 XT - Front

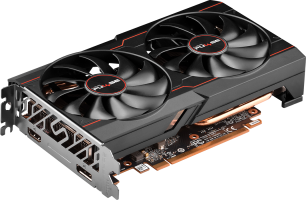

Sapphire PULSE AMD Radeon RX 6500 XT - Front Sapphire PULSE AMD Radeon RX 6500 XT - Side
Sapphire PULSE AMD Radeon RX 6500 XT
11314-08-20G
Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x4
Core
NameNavi 24
FoundryTSMC
Process Node6 nm
Transistors5400 million
Die Size107.0 mm²
Density50.5 /mm²
GPU Core Config
Cores1024
TMUs64
ROPs32
RT Cores16
Memory
TechnologyGDDR6
Size4 GB
Bus64 bit
Infinity Cache16 MB
Bandwidth143.9 GB/s
Speed18.0 Gbps
Clocks
Base clock2310 MHz
Game Clock2695 MHz 2610 MHz
Boost Clock2855 MHz 2815 MHz
Memory Clock2248 MHz
Power
8-pin1
TDP130 w 107 w
Recommended PSU400 w 300 w
Display
DisplayPort1
HDMI1
Dimensions
Slots2
Length194 mm
Height107 mm
Width40 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Sapphire PULSE AMD Radeon RX 6500 XT
11314-08-20G
2855 MHz +1.4%2194 mm107 mm40 mm
