Name: Sapphire PULSE Radeon RX 6500 XT
Brand: Sapphire
SKU: 11314-01-20G

Sapphire PULSE Radeon RX 6500 XT

Specs, info and data

The GPU Database

Featuring 280+ GPU models — and growing.

Database > GPUs > AMD RX 6500 XT > Sapphire PULSE Radeon RX 6500 XT

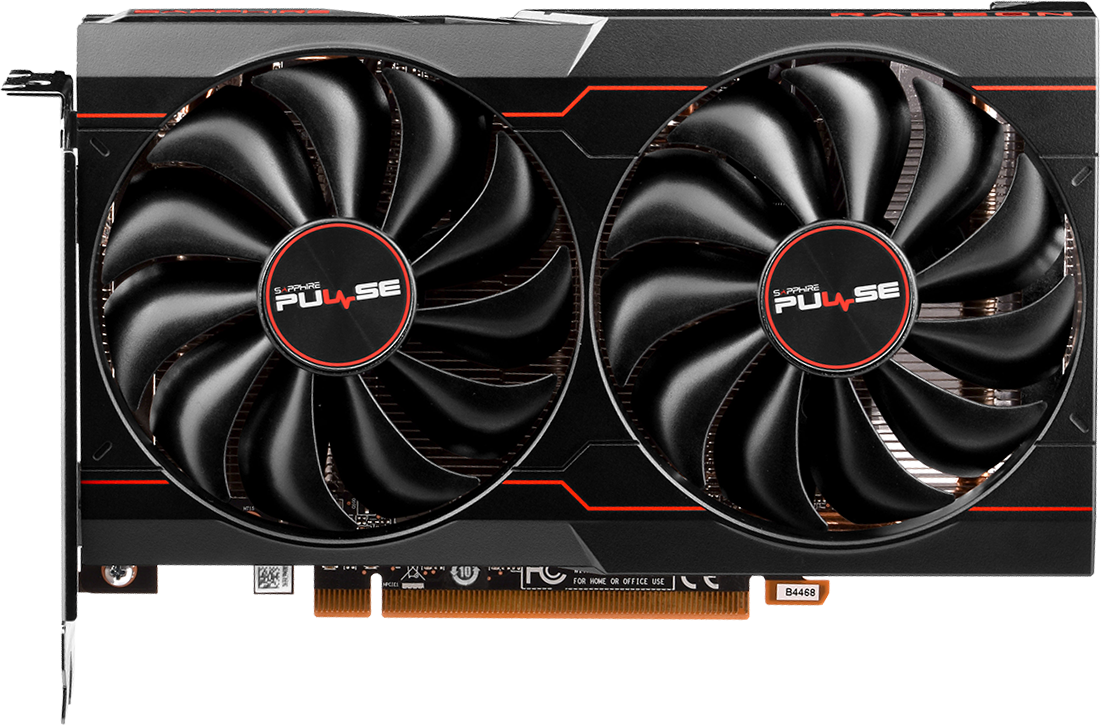

Sapphire PULSE Radeon RX 6500 XT - Front

Sapphire PULSE Radeon RX 6500 XT
11314-01-20G
GPUs.net

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x4
Core
NameNavi 24
FoundryTSMC
Process Node6 nm
Transistors5400 million
Die Size107.0 mm²
Density50.5 /mm²
GPU Core Config
Cores1024
TMUs64
ROPs32
RT Cores16
Memory
TechnologyGDDR6
Size4 GB
Bus64 bit
Infinity Cache16 MB
Bandwidth143.9 GB/s
Speed18.0 Gbps

Clocks
Base clock2310 MHz
Game Clock2685 MHz 2610 MHz
Boost Clock2825 MHz 2815 MHz
Memory Clock2248 MHz
Power
6-pin1
TDP130 w 107 w
Recommended PSU400 w 300 w
Display
DisplayPort1
HDMI1
Dimensions
Slots2
Length194 mm
Height107 mm
Width40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Sapphire PULSE AMD Radeon RX 6500 XT 11314-08-20G	2855 MHz +1.4%	2	194 mm	107 mm	40 mm
Lenovo Radeon RX 6500 XT 4X61N96915	2815 MHz
ASRock Radeon RX 6500 XT Phantom Gaming D OC RX6500XT PGD 4GO	2820 MHz +0.2%	2.1	240 mm	129 mm	42 mm
PowerColor AMD Radeon RX 6500 XT ITX AXRX 6500XT 4GBD6-DH	2815 MHz	2	165 mm	125 mm	40 mm
Sapphire PULSE Radeon RX 6500 XT 11314-01-20G	2825 MHz +0.4%	2	194 mm	107 mm	40 mm
