Sapphire NITRO+ Radeon RX 6800
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > AMD RX 6800 > Sapphire NITRO+ Radeon RX 6800

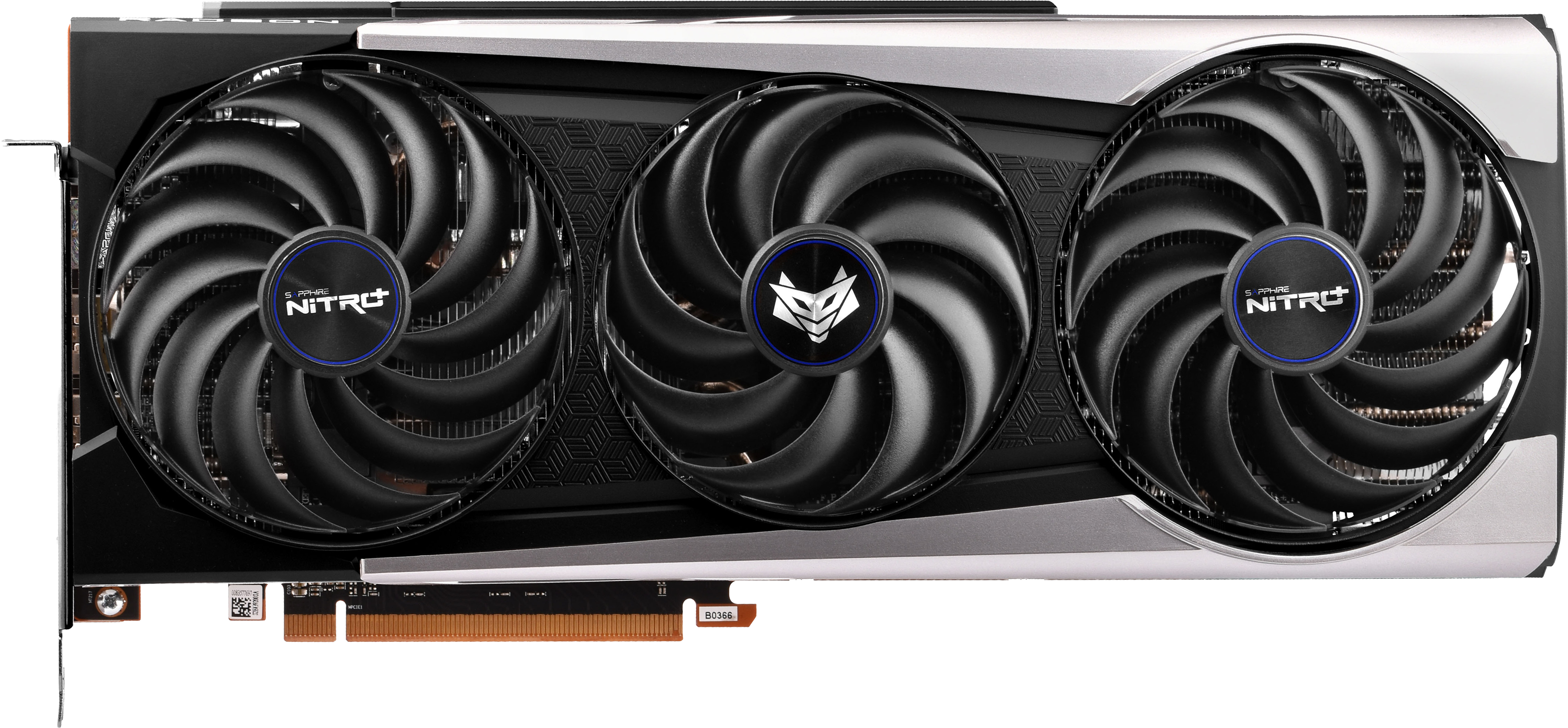

Sapphire NITRO+ Radeon RX 6800 - Front
Sapphire NITRO+ Radeon RX 6800 - Front
Sapphire NITRO+ Radeon RX 6800
11305-01-20G
Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 21
FoundryTSMC
Process Node7 nm
Transistors26800 million
Die Size520.0 mm²
Density51.5 /mm²
GPU Core Config
Cores3840
TMUs240
ROPs96
RT Cores60
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache128 MB
Bandwidth512.0 GB/s
Speed16.0 Gbps
Clocks
Base clock1700 MHz
Game Clock1980 MHz 1815 MHz
Boost Clock2190 MHz 2105 MHz
Memory Clock2000 MHz
Power
8-pin2
TDP290 w 250 w
Recommended PSU750 w 600 w
Display
DisplayPort3
HDMI1
USB Type-C1
Dimensions
Slots2.8 2
Length310.5 mm
Height134.2 mm
Width55.2 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
ASRock Radeon RX 6800 Phantom Gaming D OC
RX6800 PGD 16GO
2190 MHz +4.0%2.8305 mm131 mm55 mm
Sapphire NITRO+ Radeon RX 6800
11305-01-20G
2190 MHz +4.0%2.8310.5 mm134.2 mm55.2 mm
